01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)

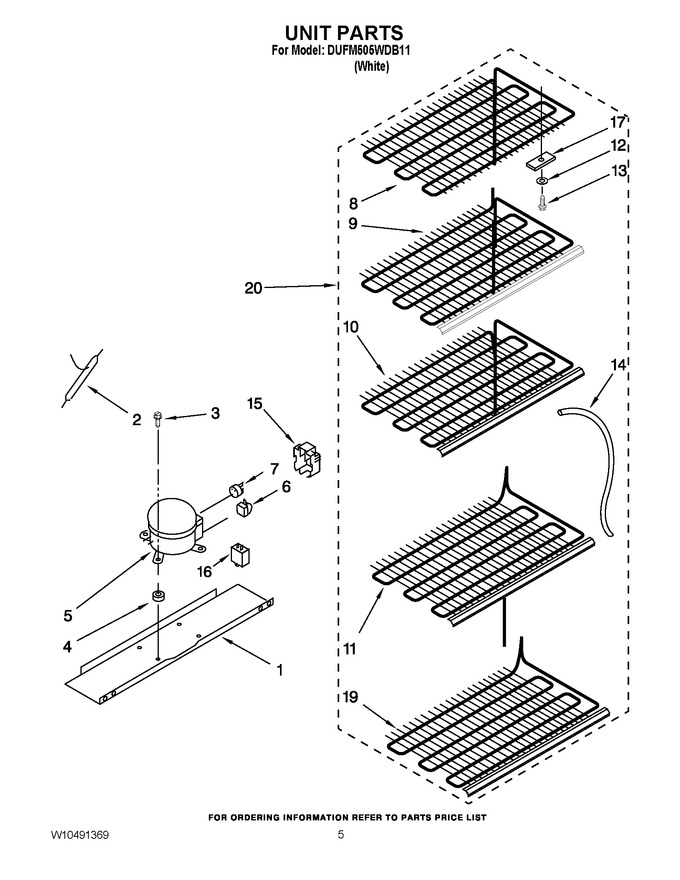

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10470130		Pan, Compressor Mounting		Appelez-nous	-
2	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 47.31
3	W11233072		Screw, Compressor Mounting   (Replaces: 3-80732-014)			Immediately	$ 12.62
4	WP2163786		Grommet   (Replaces: 13146462)				$ 7.16
5	W10309990		Compressor   (Replaces: 4-32972-142)			Immediately	$ 569.53
6	WPW10466655		Relay   (Replaces: W10466655)				$ 115.81
7	WP2187145		Overload   (Replaces: 2-34286-038)				$ 131.93
8	4-82413-008		Evaporator, Top		Appelez-nous	-
9	4-82194-009		Evaporator Shelf		Appelez-nous	-
10	4-82195-009		Evaporator Shelf		Appelez-nous	-
11	4-82196-004		Evaporator Shelf		Appelez-nous	-
12	3-80681-133		Washer		Appelez-nous	-
13	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 3-24004-109)				$ 7.25
14	2-82030-005		Heat Exchanger				$ 127.33
15	WP61002138		Cover   (Replaces: W10462677)				$ 7.89
16	3-35956-013		Capacitor				$ 103.82
17	1-80308-101		Clamp				$ 67.64
19	4-82197-008		Evaporator Shelf, Bottom		Appelez-nous	-
20	4-82416-003		Evaporator Assy		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.9 Oz. R-134a))		Appelez-nous	-
