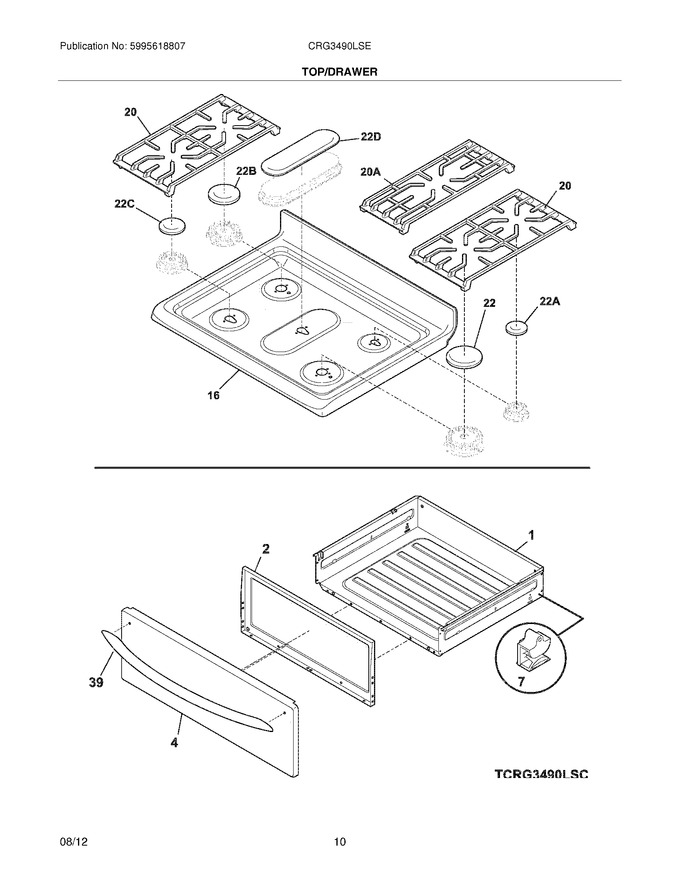

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	316409305		Panel,drawer ,stainless ,outer				$ 269.59
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316469629		Maintop Panel,black				$ 217.25
22	5304508468		Cap,18.2k Burner ,black   (Replaces: 316262104)				$ 49.45
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
20A	316424403		Grate,black ,center				$ 533.28
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap,12k Burner ,black				$ 46.36
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 72.30
F20	316424203		Grate,black ,(2)				$ 355.67
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316433303		Screw,handle Mtg. ,10-24 X 1.75`` ,(2)   (Replaces: 316439500)			Immediately	$ 31.17

    View Diagram in Separate Window       Print Part List
