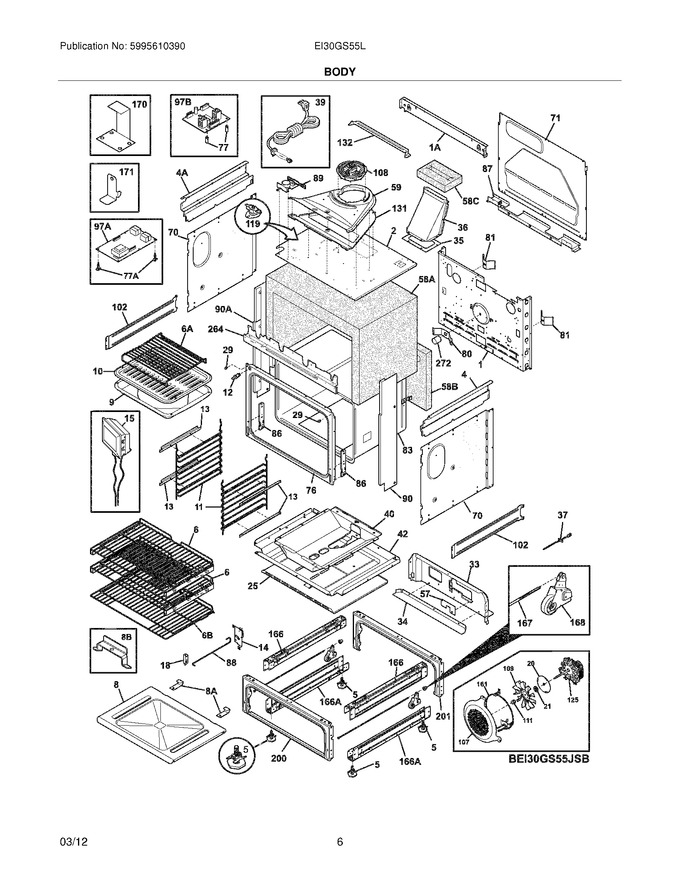

07 - Body
09 - Top/drawer
11 - Door
12 - Wiring Diagram
13 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259220 | Back,main |
|
$ 88.31 | |||||
| 2 | 318570501 | Panel,insualtion ,top |
|
- | |||||
| 4 | 318905700 | Panel,side ,rh Upper |
|
$ 62.79 | |||||
| 5 | 318175510 | Screw,leveling ,w/tee Nut (Replaces: 318175508) |
|
Immediately | $ 24.26 | ||||
| 6 | 318903105 | Shelf,oven ,(2) |
|
$ 416.08 | |||||
| 8 | 318290503 | Panel,oven ,bottom (Replaces: 318290502) |
|
- | |||||
| 9 | 318138801 | Pan,broiler |
|
- | |||||
| 10 | 318126401 | Insert,broiler Pan |
|
- | |||||
| 11 | 318903300 | Rack,oven Shelf ,(2) |
|
$ 105.80 | |||||
| 13 | 318603913 | Bracket,ladder Mtg. ,(4) |
|
$ 66.99 | |||||
| 15 | 318241006 | Lamp,oven ,(2) ,halogen |
|
$ 117.71 | |||||
| 18 | 318562300 | Bracket,rod |
|
$ 16.87 | |||||
| 20 | 318389400 | Plate,retainer |
|
$ 16.21 | |||||
| 21 | 318389000 | Seal,ring |
|
$ 22.75 | |||||
| 25 | 318291900 | Bracket,shield ,lower |
|
$ 94.27 | |||||
| 29 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 33 | 318287800 | Panel,valve Mtg. |
|
- | |||||
| 34 | 318289401 | Panel,valve Filler |
|
- | |||||
| 35 | 318291300 | Seal,flue Cavity |
|
- | |||||
| 36 | 318288801 | Box,flue Assy. |
|
- | |||||
| 39 | 5304534377 | Cord,service (Replaces: 318144008) |
|
$ 26.85 | |||||
| 40 | 318291800 | Box,oven Burner |
|
- | |||||
| 42 | 318288701 | Bracket,body ,middle |
|
$ 117.02 | |||||
| 57 | 318268300 | Cover,burner Opening |
|
- | |||||
| 59 | 318570603 | Duct,cooling Fan |
|
$ 38.26 | |||||
| 70 | 318259114 | Shield,insulation ,sides ,(2) |
|
$ 96.81 | |||||
| 71 | 318260007 | Panel,rear Box |
|
$ 102.90 | |||||
| 76 | 318056298 | Front,oven |
|
- | |||||
| 77 | 318293702 | Spacer,control |
|
$ 16.22 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 83 | 318327011 | Liner,oven |
|
$ 293.42 | |||||
| 86 | 318241408 | Receptacle,hinge ,(2) |
|
$ 47.41 | |||||
| 87 | 318260624 | Bracket,cable Mtg. |
|
- | |||||
| 88 | 318376505 | Rod,latch |
|
$ 13.72 | |||||
| 90 | 318905816 | Panel,side ,black ,rh |
|
- | |||||
| 98 | 5304401490 | Screw,6-18 X 1 ,(2) |
|
- | |||||
| 102 | 318327500 | Panel,reinforcement |
|
- | |||||
| 107 | 318906601 | Cover,fan |
|
$ 202.63 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 131 | 318574803 | Bottom,cooling Duct |
|
- | |||||
| 132 | 318579301 | Bracket,supprt ,duct |
|
- | |||||
| 166 | 318298400 | Bracket,base Support ,(2) |
|
$ 59.48 | |||||
| 167 | 318147811 | Screw,lock ,adjusting |
|
$ 31.19 | |||||
| 168 | 318302400 | Wheel & Bracket Assy,adjustable ,(2) |
|
$ 75.13 | |||||
| 170 | 318335700 | Anti-tip & Accessories |
|
$ 56.89 | |||||
| 171 | 318335200 | Bracket,anti-tilt |
|
$ 31.90 | |||||
| 200 | 318298226 | Frame,drawer ,front |
|
$ 107.00 | |||||
| 201 | 318298233 | Frame,drawer ,black (Replaces: 318298230) |
|
$ 45.36 | |||||
| 264 | 318913118 | Trim,vent ,black ,upper |
|
- | |||||
| 272 | 318249409 | Tube,protector |
|
- | |||||
| 1A | 318905600 | Back,main ,upper |
|
$ 55.24 | |||||
| 4A | 318905701 | Panel,side ,lh Upper |
|
$ 75.14 | |||||
| 58A | 318386118 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318285085 | Insulation,oven Back |
|
- | |||||
| 58C | 318594402 | Insulation,flue (Replaces: 318285099) |
|
$ 245.64 | |||||
| 6A | 318365800 | Rack,broiler Pan |
|
$ 52.46 | |||||
| 6B | 318908006 | Shelf,oven (Replaces: 318908003) |
|
Immediately | $ 232.91 | ||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 8A | 318367401 | Bracket,retainer ,(2) |
|
- | |||||
| 8B | 318403202 | Bracket,service Panel ,(2) |
|
$ 17.69 | |||||
| 90A | 318905817 | Panel,side ,black ,lh |
|
- | |||||
| F108 | 318575603 | Motor,cooling Fan |
|
Immediately | $ 184.19 | ||||
| F119 | 318578506 | Thermostat,cooling Fan ,105 Deg. |
|
Immediately | $ 58.19 | ||||
| F12 | 808136601 | Switch,light ,door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| F125 | 5304463302 | Motor,fan (Replaces: 318398201) |
|
Immediately | $ 259.95 | ||||
| F14 | 318562200 | Sensor Assy,w/switch ,and Bracket |
|
$ 257.99 | |||||
| F161 | 318255504 | Element,convection ,350 W |
|
$ 97.07 | |||||
| F166 | 318298403 | Bracket,base Support ,lower ,(2) |
|
- | |||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| F89 | 318261229 | Motor,latch Assy (Replaces: 318261221) |
|
Immediately | $ 93.62 | ||||
| F97A | 316443917 | Board,relay |
|
$ 363.64 | |||||
| F97B | 316519200 | Board,variable Speed |
|
Immediately | $ 256.24 | ||||
| FNI | 318578325 | Harness,wiring ,latch |
|
- | |||||
| FNI | 318946400 | Bulb,halogen ,g9 ,40w ,120v |
|
Immediately | $ 49.32 | ||||
| FNI | 318306616 | Harness,wiring ,main |
|
- | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 5304435874 | Plate,covering ,probe |
|
- | |||||
| NI | 5303323137 | Screw,10-32 X 17/32 |
|
$ 11.88 | |||||
| NI | 5304500008 | Screw,10-24 X 1.750 (Replaces: 5304416408) |
|
$ 12.13 | |||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 5304417153 | Screw,shoulder ,8-18 X 1/2 ,(4) |
|
- | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 5303317179 | Screw-element, 6 X 3/4 |
|
$ 2.42 | |||||
| NI | 318579001 | Bracket,wire |
|
$ 11.08 | |||||
| NI | 5304481623 | Screw,hinge/recpt Mtg |
|
$ 9.61 | |||||
| NI | 5303324184 | Screw,8-18 X 5/16 ,black |
|
Immediately | $ 14.18 | ||||
| NI | 5304400192 | Retainer,wiring |
|
- | |||||
| NI | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(4) |
|
Immediately | $ 14.18 | ||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 5304486664 | Rivet,ladder Bracket ,(8) |
|
$ 3.52 |
