SELECT A DIAGRAM

01 - Cover Sheet

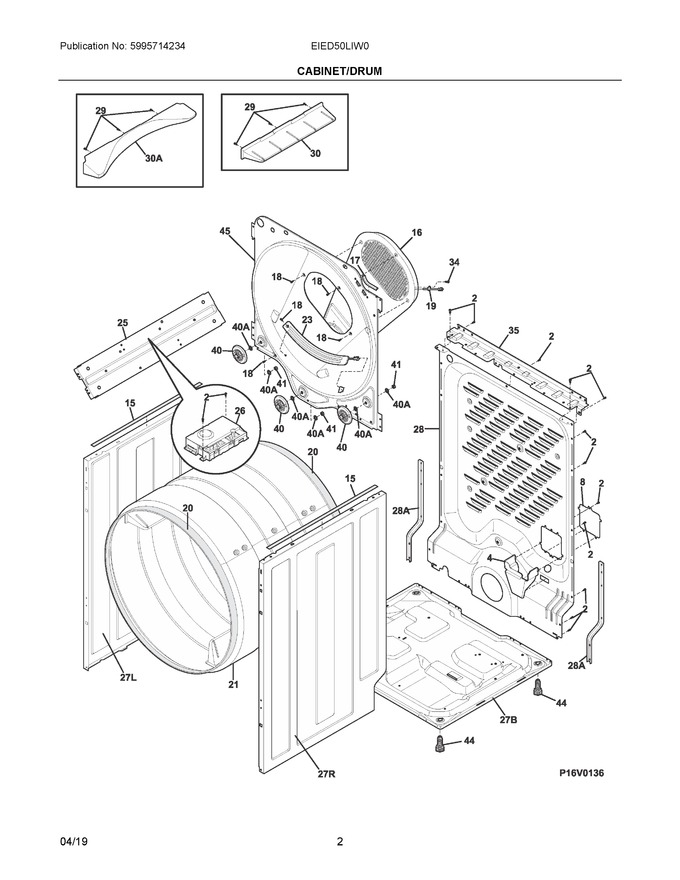

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
4	134792100		Bracket, Main, Terminal				$ 29.07
8	134694400		Cover, Terminal Block				$ 72.18
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 8.51
16	5304508449		Duct, Heat, Rear   (Replaces: 134694020)			Immediately	$ 108.44
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	134711200		Thermistor, Inlet			Immediately	$ 51.03
20	134705900		Seal, Felt, Drum				$ 73.45
21	134712900		Drum, Dryer, Assembly 30", White		Appelez-nous	-
23	134786110		Sensor-moisture, Assembly				$ 92.14
25	137297500		Bracket, Mounting, Main Control Bx		Appelez-nous	-
26	809160308		Control Board, Printed Circuit, With Housing   (Replaces: 134706700)				$ 292.01
28	134713000		Panel, Backsheet, Rear		Appelez-nous	-
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
30	137033710		Vane, Straight, Gray		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	134713100		Bracket, Top Panel Mtg., Rear				$ 70.82
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
44	134158000		Leveling Leg, Screw		Appelez-nous	-
45	137556623		Bulkhead, Panel, Rear   (Replaces: 134712815)				$ 311.52
27B	134690203		Base, Dryer   (Replaces: 134690200)				$ 273.58
27L	134712610		Panel, Left Side, White				$ 246.17
27R	134712710		Panel, Right Side, White				$ 197.56
28A	137029800		Bracket, Reinforcement, Backsheet		Appelez-nous	-
30A	137028510		Vane, Mixing, Smooth		Appelez-nous	-
40A	134716700		Washer, Flat				$ 2.12
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIA	134930800		Harness, Moisture Sensor			Immediately	$ 48.44

    View Diagram in Separate Window       Print Part List
