SELECT A DIAGRAM

01 - Upper Oven Parts


02 - Lower Oven Parts


03 - Upper Oven Door Parts


04 - Lower Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Optional Parts

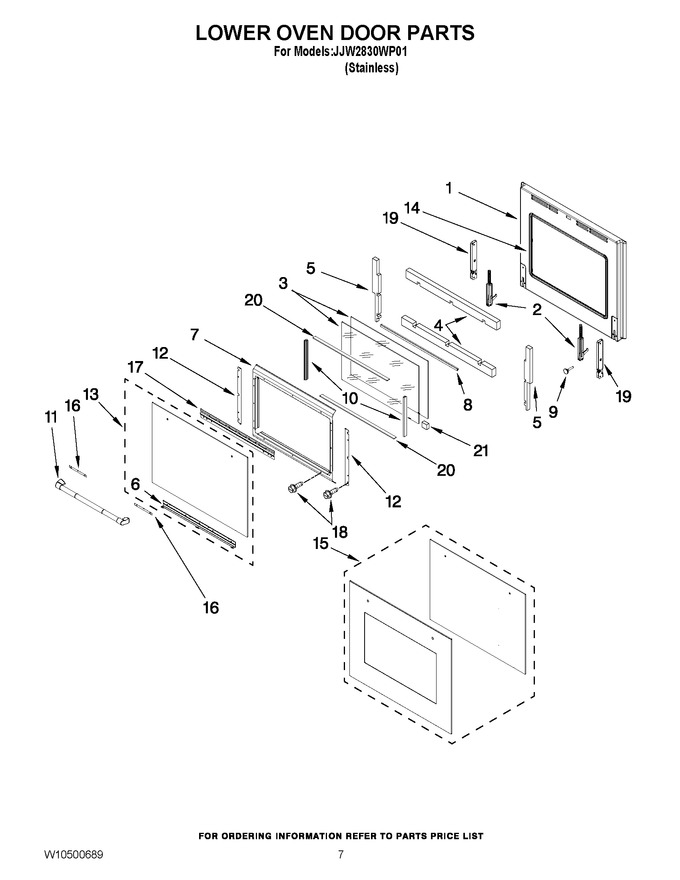

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10187019		Liner, Door   (Replaces: W10187019)				$ 304.71
2	W10277751		Hinge, Door				$ 50.69
3	W10176100		Glass, Inner				$ 101.18
4	W11688417		Insulation, Door (horizontal)   (Replaces: W10273676)				$ 22.37
5	W10273591		Insulation, Door (vertical)				$ 39.20
6	W10176175		Bracket, Door Clip		Appelez-nous	-
7	W10176103		Retainer, Dr Glass				$ 135.05
8	W10277623		Spacer, Inner Glass		Appelez-nous	-
9	W10176233		Bumper, Door		Appelez-nous	-
10	W10305979		Spacer, Inner Glass Side   (Replaces: W10277621)				$ 88.95
11	W10856834		Handle, Door   (Replaces: W10187014)				$ 287.78
12	W10186882		Bracket, Inner Door Glass				$ 29.84
13	W10209065		Glass, Outer Door Assy.				$ 154.76
14	W10213803		Glass, Cavity				$ 95.22
15	W10187006		Kit, Glass Assy.				$ 440.82
16	W10213723		Pad, Handle Foam				$ 70.31
17	W10213720		Bracket, Handle				$ 132.57
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
19	W10175993		Hinge, Rcvr				$ 44.06
20	W10277580		Insulation, Oven Door		Appelez-nous	-
21	W11684783		Insulation, Corner Door   (Replaces: W10296505)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
