SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet


07 - Shelves

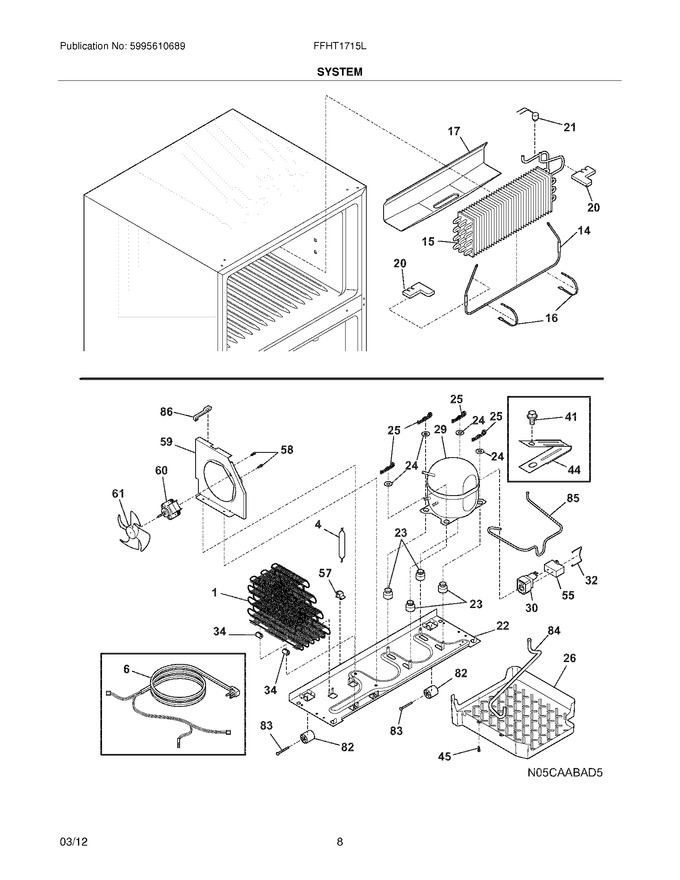

09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	241801302		Trough-drain				$ 83.42
20	241551902		Insulation Block				$ 11.34
22	241665605		Base-compressor				$ 140.34
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	241920605		Pan-defrost   (Replaces: 241683601)				$ 53.76
32	241982601		Clip,controller ,compressor				$ 10.63
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	241941202		Screw,hex Washer Head ,8-18 X 5/16   (Replaces: 240433204)				$ 15.17
44	5304456288		Clamp-wiring Harness,strain Relief ,galv Steel		Appelez-nous	-
45	241500305		Screw,hex Washer Head ,8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569202		Screw,8-18 X .500				$ 2.12
59	242050604		Shroud,cond Fan Motor   (Replaces: 242050601)				$ 27.64
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
84	240500801		Tube-drain,rubber ,lower				$ 65.21
85	241856904		Tube-connector,suction				$ 43.73
86	240409302		Spacer-cond Tube,black				$ 67.49
F1	241785404		Condenser,dynamic				$ 169.39
F14	242044007		Heater-defrost   (Replaces: 242044019)			Immediately	$ 52.91
F15	242214411		Evaporator Kit   (Replaces: 242067213)				$ 167.60
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	5303918363		Compressor Kit		Appelez-nous	-
F30	241941004		Starter				$ 83.42
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944002)			Immediately	$ 31.67
F55	297286803		Capacitor-run			Immediately	$ 28.77
F6	5304521786		Harness-wiring,machine Compt   (Replaces: 242019701)				$ 126.65
F60	242018301		Motor-condenser Fan   (Replaces: 297279502)			Immediately	$ 138.56
FNI	5303918263		Heat Exchanger Kit,suction Line				$ 461.16
FNI	241619705		Harness-wiring,main W/o Light		Appelez-nous	-
FNI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	240359403		Screw-fan Shroud,(2)				$ 3.79
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	240346701		Tape-foam Seal,shroud				$ 29.77
