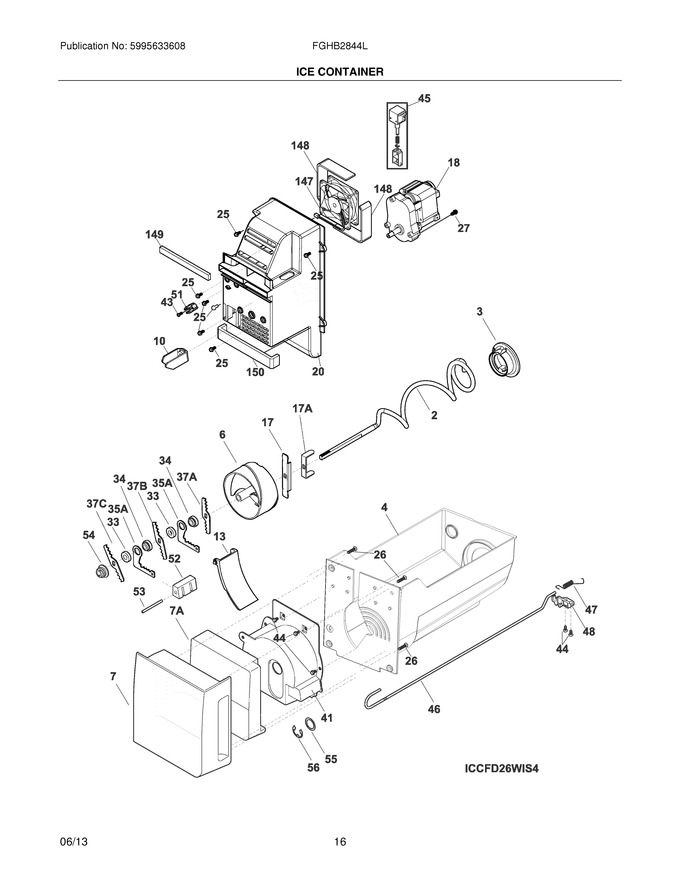

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241829401 | Auger-ice |
|
$ 265.78 | |||||
| 3 | 241830201 | Cam-drive |
|
$ 36.02 | |||||
| 4 | 242093101 | Container-ice,bucket Only |
|
$ 116.03 | |||||
| 6 | 241829802 | Drum-ice Disp |
|
- | |||||
| 7 | 242093201 | Cover-bucket Front |
|
$ 44.99 | |||||
| 10 | 241829001 | Bar-drive |
|
$ 58.55 | |||||
| 13 | 242106201 | Gate |
|
- | |||||
| 17 | 241830602 | Drive Blade |
|
- | |||||
| 20 | 242095702 | Housing-air Handler, Gen Ii Im (Replaces: 242095701) |
|
$ 90.01 | |||||
| 25 | 240555002 | Screw,hex Washer Head ,8-32t X 0.375 (Replaces: 241690701) |
|
Immediately | $ 13.46 | ||||
| 26 | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 27 | 240555002 | Screw,8-32 X 3/8 ,black (Replaces: 240555004) |
|
Immediately | $ 13.46 | ||||
| 33 | 241684802 | Spacer (Replaces: 241684801) |
|
$ 9.10 | |||||
| 34 | 241689802 | Spacer (Replaces: 241689801) |
|
$ 8.34 | |||||
| 41 | 242093301 | Housing-crusher |
|
$ 79.62 | |||||
| 43 | 241641502 | Screw |
|
$ 8.51 | |||||
| 44 | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 46 | 241817901 | Control Rod |
|
$ 111.46 | |||||
| 47 | 241839001 | Spring-control Rod |
|
$ 18.44 | |||||
| 48 | 241830101 | Bracket-control |
|
$ 14.18 | |||||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im |
|
Immediately | $ 20.56 | ||||
| 52 | 241830701 | Spacer-fixed Blades |
|
$ 12.18 | |||||
| 53 | 241869601 | Pin-spiral,fixed Blades |
|
$ 9.93 | |||||
| 54 | 241829601 | Nut-auger |
|
$ 18.95 | |||||
| 55 | 241690306 | Washer |
|
$ 49.62 | |||||
| 56 | 241690201 | E-ring |
|
$ 19.13 | |||||
| 148 | 242095406 | Gasket |
|
Immediately | $ 18.17 | ||||
| 149 | 5303918784 | Gasket-evap Housing,.250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 122.75 | ||||
| 150 | 5303918784 | Gasket (Replaces: 242095407) |
|
Immediately | $ 122.75 | ||||
| 17A | 242182601 | Blade,ice Breaker |
|
- | |||||
| 35A | 241830401 | Fixed Blade,round |
|
$ 50.99 | |||||
| 37A | 241830301 | Blade,crusher No.1 |
|
$ 64.00 | |||||
| 37B | 241830302 | Blade,crusher No.2 |
|
$ 58.70 | |||||
| 37C | 241830303 | Blade,crusher No.3 |
|
$ 52.83 | |||||
| 7A | 242095201 | Insulation,i/container Frt |
|
$ 17.77 | |||||
| F147 | 5304493604 | Fan Assembly,motor ,with Blade (Replaces: 242119401) |
|
Immediately | $ 90.55 | ||||
| F18 | 241816602 | Motor-auger |
|
Immediately | $ 154.76 | ||||
| F45 | 241675704 | Solenoid Assy,115v (Replaces: 241675701) |
|
Immediately | $ 65.71 | ||||
| FNI | 242095802 | Harness-wiring,air Handler |
|
- | |||||
| NI | 242093003 | Ice Container Assy,w/moving Parts |
|
$ 241.69 |
