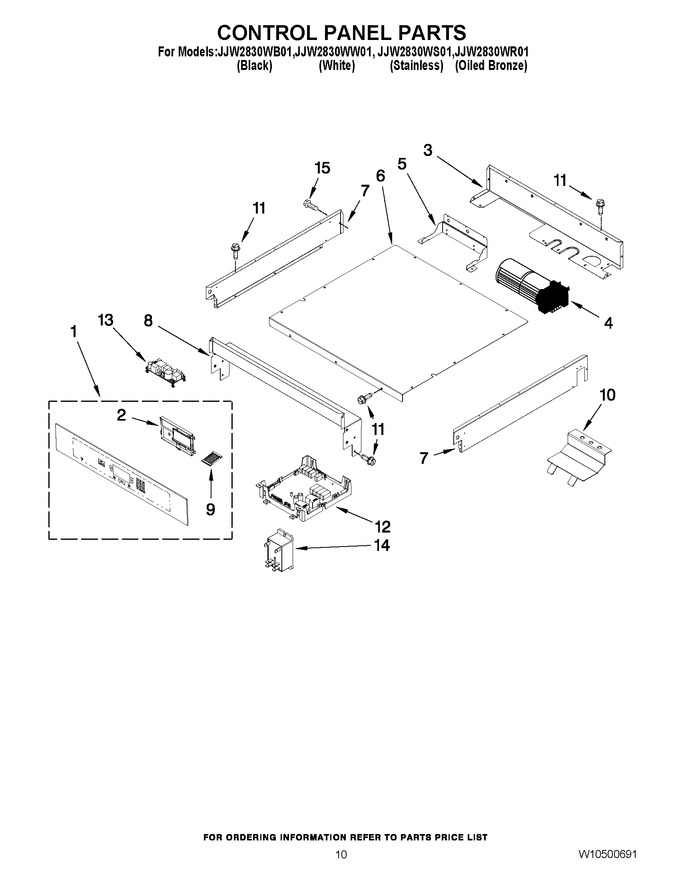

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10344134		Assembly, Control Panel (black)		Appelez-nous	-
1	W10344136		Assembly, Control Panel (white)		Appelez-nous	-
1	W10344135		Assembly, Control Panel (oiled Bronze)		Appelez-nous	-
1	W10344137		Assembly, Control Panel (stainless)		Appelez-nous	-
2	W10811884		Assy., Ui Extended   (Replaces: W10344083)				$ 518.44
3	W10187048		Panel, Control Box Rear		Appelez-nous	-
4	WPW10273667		Blower (upper)   (Replaces: W10273667)			Immediately	$ 269.68
4	WPW10273666		Blower (lower)   (Replaces: W10273666)			Immediately	$ 293.73
5	W10187016		Bracket, Cooling Fan Lower				$ 88.04
5	W10186997		Bracket, Cooling Fan Upper				$ 73.49
6	W10176180		Panel, Control Box Top		Appelez-nous	-
7	W10176002		Panel, Control Box (left Side)		Appelez-nous	-
7	W10176003		Panel, Control Box (right Side)		Appelez-nous	-
8	W10176004		Support, Top Cntrl				$ 14.32
9	W10175829		Cable		Appelez-nous	-
10	W10176243		Bracket, Cover (lwr Cooling Fan)		Appelez-nous	-
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	W10292568		Mgr., Appliance				$ 320.62
13	WPW10286791		Control, Elec   (Replaces: W10286791)			Immediately	$ 251.06
14	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 172.43
15	W10236043		Screw				$ 65.26

    View Diagram in Separate Window       Print Part List
