Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10350762 Appliance Manager Microwave Special Order $ 148.71

2 W10130901 Insulation, Side Left Appelez-nous -
3 W10120471 Cover, Side Left Appelez-nous -
4 W11607085 Thermostat   (Replaces: W10120223) In-Stock Immediately $ 38.07

5 N/P Not Serviced Appelez-nous -
6 W10853613 Noise Filter   (Replaces: W10287966) Special Order $ 184.93

7 W10120228 Control, Electric Wide Converter Special Order $ 187.73

8 N/P Not Serviced Appelez-nous -
9 461967825321 Screw   (Replaces: W10131249) Special Order $ 10.40

10 461967842541 Actuator   (Replaces: 4375427) Special Order $ 61.97

11 WP4375321 Fuse   (Replaces: 4375321) In-Stock Immediately $ 16.45

12 W10245194 Block, Fuse   (Replaces: 4375231) Special Order $ 74.84

13 W10130897 Bracket, Support Appelez-nous -
14 W11233913 Thermostat   (Replaces: W10287986) In-Stock Immediately $ 133.79

15 W11346197 Magnetron   (Replaces: W10120113) In-Stock Immediately $ 244.13

16 N/P Not Serviced Appelez-nous -
17 W10475855 Spring, Lamp Appelez-nous -
18 WPW10490593 Housing, Lamp   (Replaces: 8205658) Special Order $ 66.70

19 W10886919 Lamp   (Replaces: W10287972) In-Stock Immediately $ 29.00

20 W11208292 Thermostat   (Replaces: W10287987) In-Stock Immediately $ 138.98

21 W10211972 Switch   (Replaces: W10330566) In-Stock Immediately $ 47.16

22 461968971522 Asm-interlock (includes Harness)   (Replaces: W10358246) In-Stock Immediately $ 134.38

23 423107022541 Reflector   (Replaces: 4375320) Special Order $ 73.63

24 W11193483 Lens, Lamp   (Replaces: 4375318) In-Stock Immediately $ 89.85

25 W11440819 Clip, Spring   (Replaces: W10120231) Special Order $ 19.71

26 W11238401 Transformer, Light   (Replaces: 8205692) In-Stock Immediately $ 309.33

27 N/P Not Serviced Right Left Appelez-nous -
28 WPW10128850 Asembly, Arm   (Replaces: W10128850) In-Stock Immediately $ 121.78

29 W10915651 Plate, Mica   (Replaces: W10120230) In-Stock Immediately $ 76.20

30 W11214480 Arm   (Replaces: W10120236) Special Order $ 86.18

31 W10911403 Motor, Turntable   (Replaces: W10287967) In-Stock Immediately $ 105.78

32 W11699906 Sensor, Humidity   (Replaces: W10475857) Special Order $ 118.76

33 W10874474 Hinge, Door   (Replaces: W10120478) In-Stock Immediately $ 54.10

34 N/P Not Serviced Appelez-nous -
35 N/P Not Serviced Appelez-nous -
36 N/P Not Serviced Appelez-nous -
37 W11344874 Blower Assembly   (Replaces: W10330572) In-Stock Immediately $ 164.35

38 W10217711 Inverter   (Replaces: W10120229) In-Stock Immediately $ 260.67

39 461967825971 Screw   (Replaces: W10130890) Appelez-nous -
40 N/P Not Serviced Appelez-nous -
41 N/P Not Serviced Appelez-nous -
42 WPW10120235 Plunger   (Replaces: W10120235) In-Stock Immediately $ 6.27

43 WP8205683 Interlock   (Replaces: 8205683) In-Stock Immediately $ 89.47

44 N/P Not Serviced Appelez-nous -
45 W11700292 Spring   (Replaces: 8205704) Special Order $ 61.97

46 N/P Not Serviced Appelez-nous -
47 N/P Support Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

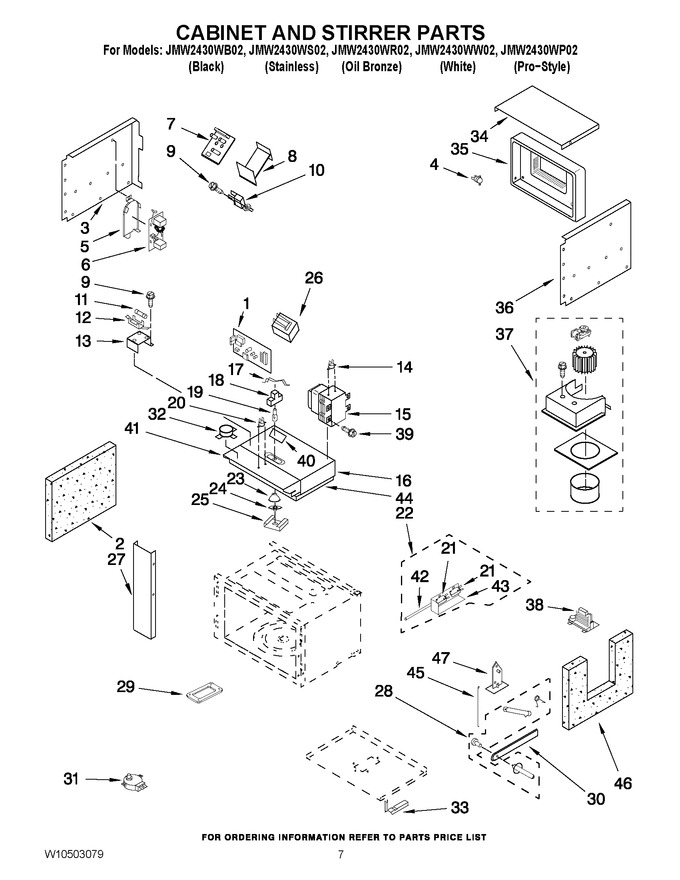

Diagram for JMW2430WB02
