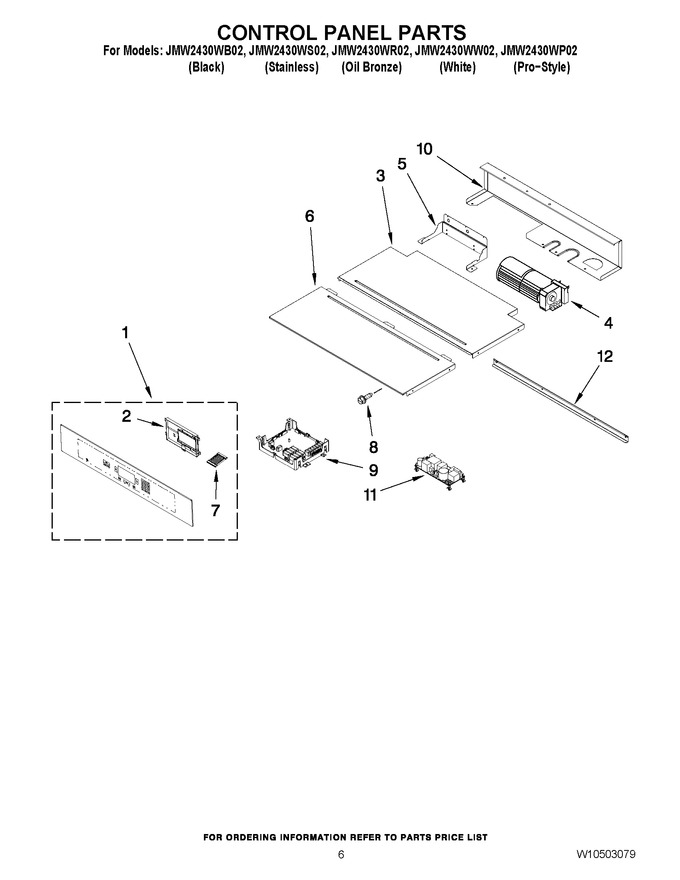

04 - Control Panel Parts


05 - Cabinet And Stirrer Parts


06 - Microwave Compartment Parts


07 - Microwave Door Parts


08 - Top Support And Turntable Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10212041		Assembly, Control Panel (oiled Bronze)				$ 1,233.62
1	W10401259		Assembly, Control Panel (ss, Pro-style)   (Replaces: W10187356)			Immediately	$ 1,986.86
1	W10212039		Assembly, Control Panel (black)		Appelez-nous	-
1	W11087462		Assembly, Control Panel (white)   (Replaces: W10212040)				$ 3,054.69
2	W10289537		Assy., Ui Core		Appelez-nous	-
3	W10176094		Panel, Rear		Appelez-nous	-
4	WPW10273667		Blower   (Replaces: W10273667)			Immediately	$ 269.68
5	W10186997		Bracket, Cooling Fan				$ 73.49
6	W10311703		Panel, Front		Appelez-nous	-
7	W10175829		Cable		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	W10292566		Manager, Appliance				$ 376.13
10	W10186983		Bracket, 2nd Blower		Appelez-nous	-
11	WPW10286791		Control, Power Microwave, Ui   (Replaces: W10286791)			Immediately	$ 251.06
12	W10291274		Bracket, Wires		Appelez-nous	-
