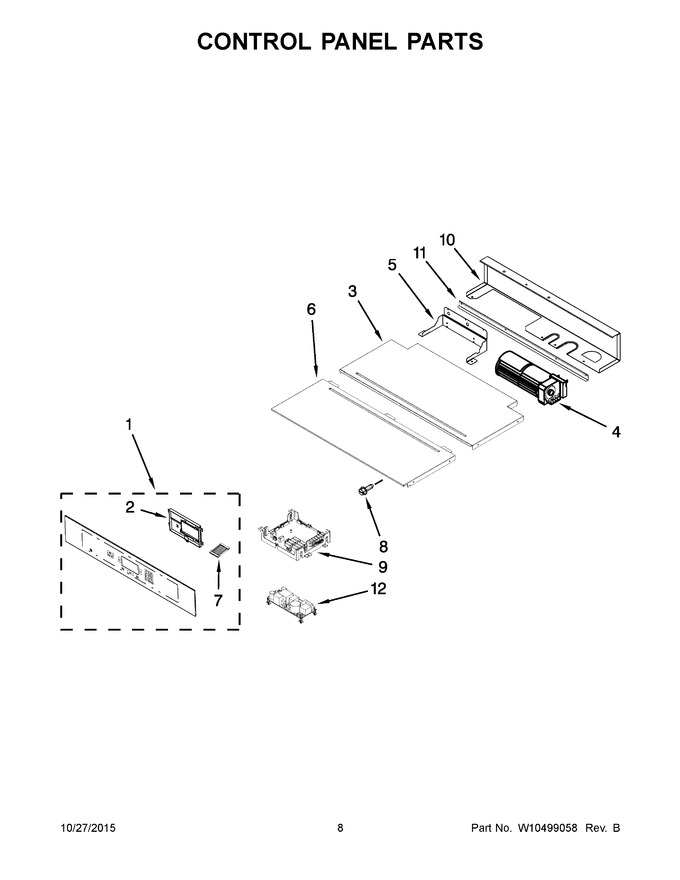

05 - Control Panel Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Support And Turntable Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319321		Assembly, Control Panel (black)		Appelez-nous	-
2	W10316580		Electronic Control		Appelez-nous	-
3	W10176094		Panel, Rear		Appelez-nous	-
4	WPW10273667		Blower   (Replaces: W10273667)			Immediately	$ 269.68
5	W10186997		Bracket, Cooling Fan				$ 73.49
6	W10311703		Panel, Front		Appelez-nous	-
7	W10175829		Cable, User Interface		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	W10292566		Manager, Appliance				$ 376.13
10	W10186983		Bracket, 2nd Blower		Appelez-nous	-
11	W10291274		Bracket, Wires Support		Appelez-nous	-
12	WPW10286791		Supply, Power   (Replaces: W10286791)			Immediately	$ 251.06
1A	W10319322		Assembly, Control Panel (ss, Pro-style)				$ 1,943.09
1B	W10319323		Assembly, Control Panel (oil Bronze)		Appelez-nous	-
