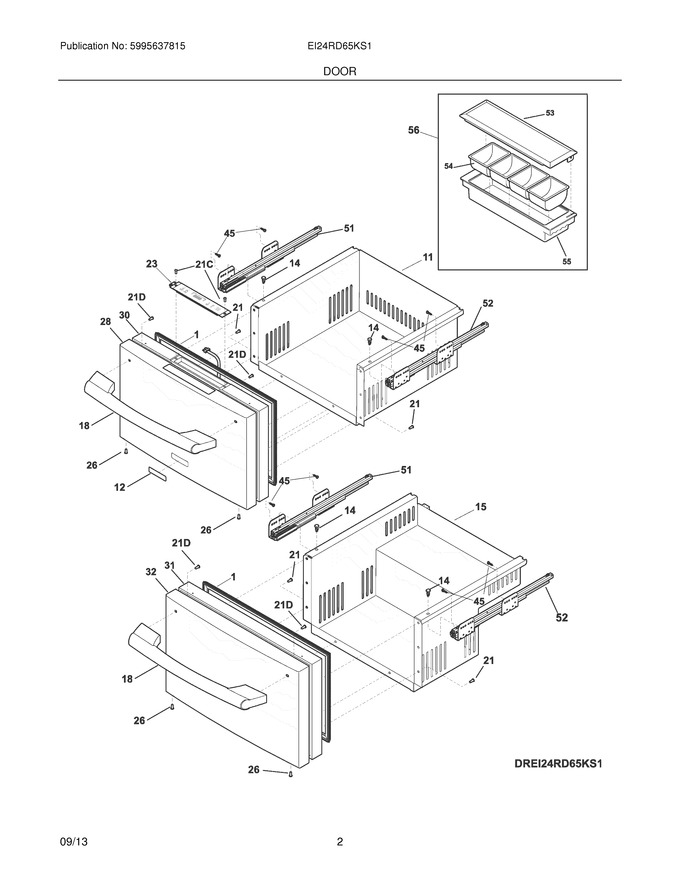

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241965801		Drawer-top		Appelez-nous	-
12	241873301		Nameplate,electrolux ,stainless				$ 11.15
14	241967001		Plug-button,black		Appelez-nous	-
15	241966801		Drawer-bottom				$ 697.94
18	241881306		Handle,door ,stainless				$ 163.11
21	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
26	215503206		Screw-no.10-16 Hilo Phil Pan Hd		Appelez-nous	-
28	241966502		Cover-top Drawer		Appelez-nous	-
30	241981201		Front,top Drawer ,w/ui Harness				$ 948.68
31	241981202		Front-drawer,bottom Drawer		Appelez-nous	-
32	241959303		Cover-bottom Drawer		Appelez-nous	-
45	240383407		Screw,truss Hd Quad ,no.10-16 X .500 ,white				$ 12.76
51	242112601		Rail-shelf,full Access ,left				$ 143.12
52	242112602		Rail-shelf,full Access ,right				$ 150.03
53	241965701		Lid-condiment Tray		Appelez-nous	-
54	241964401		Plate-condiment Tray				$ 48.11
55	241965601		Tray-condiment		Appelez-nous	-
56	241965501		Tray-condiment,complete Assemb		Appelez-nous	-
21C	241918201		Screw,no.8-32 X 3/8 ,flat Head				$ 9.98
21D	241951701		Screw,truss Head ,1/4-20		Appelez-nous	-
F1	242038301		Gasket-drawer				$ 244.81
F21D	241978101		Plate,stiffener ,screw		Appelez-nous	-
F23	241897404		Board-control,temp Control				$ 383.99
NI	218515401		Clip-grille				$ 17.72
