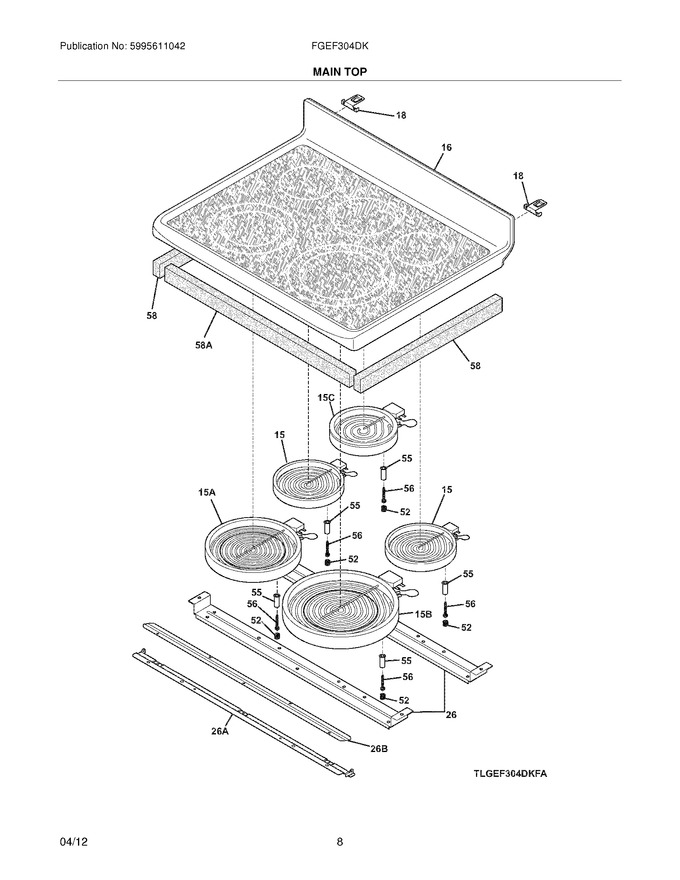

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318394213		Main Top Assy,glass/steel ,white		Appelez-nous	-
18	316436600		Hinge Bracket,maintop ,(2)				$ 45.36
26	318410902		Bracket,element Mtg ,(2)		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
58	318285098		Insulation,1.25`` Thick ,19 X 2				$ 4.13
26A	318405701		Bracket,cooktop Mtg ,black		Appelez-nous	-
26B	316214202		Bracket,chassis Support ,front				$ 25.41
58A	318362141		Insulation		Appelez-nous	-
F15	318178110		Element,surface ,6`` ,1200w ,(2) ,radiant   (Replaces: 318198830)			Immediately	$ 122.86
F15A	5304533520		Element,surface ,6``/9`` ,1400/3000w ,radiant   (Replaces: 316465002)			Immediately	$ 90.14
F15B	316282100		Element Surface Dual,surface ,1700/2700w,dual Radiant   (Replaces: 318198940)			Immediately	$ 249.27
F15C	140273621015		Element,surface ,warmer ,100 W   (Replaces: 318198832)			Immediately	$ 35.77
FNI	318199393		Harness,wiring ,cooktop				$ 147.21
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88

    View Diagram in Separate Window       Print Part List
