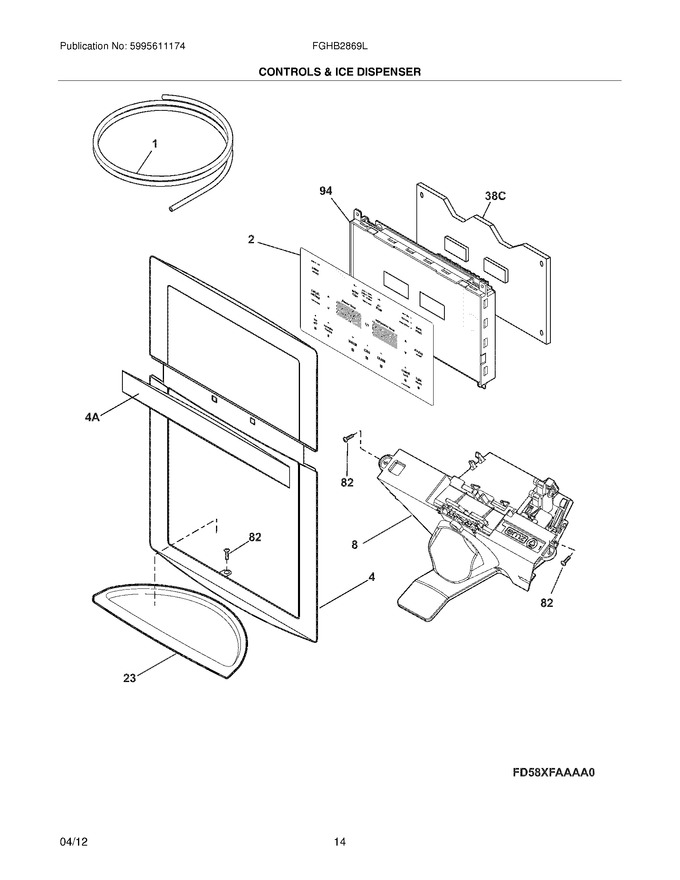

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| 4 | 242034203 | Cover-module,gray |
|
$ 156.14 | |||||
| 8 | 242074218 | Module-dispenser (Replaces: 242074206) |
|
$ 273.77 | |||||
| 23 | 242034004 | Drip Tray,gray |
|
$ 110.67 | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 94 | 242034101 | Housing-control |
|
$ 52.34 | |||||
| 4A | 242061101 | Trim,facade |
|
$ 70.61 | |||||
| F2 | 242166903 | Switch-membrane |
|
$ 236.68 | |||||
| F38C | 241973712 | Board-control |
|
$ 280.25 | |||||
| NI | 218976436 | Tube-water,5/16 - 42`` ,yellow ,sd (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| NI | 241964705 | Tube-water,1/4 - 24`` ,green |
|
$ 10.55 | |||||
| NI | 241965906 | Tube-water,5/16 - 67`` ,natural |
|
Immediately | $ 24.10 | ||||
| NI | 242169404 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension |
|
- | |||||
| NI | 241510904 | Harness-dispenser,grounding |
|
$ 60.96 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 5303918571 | Kit-water Fill Chute |
|
$ 164.24 |
