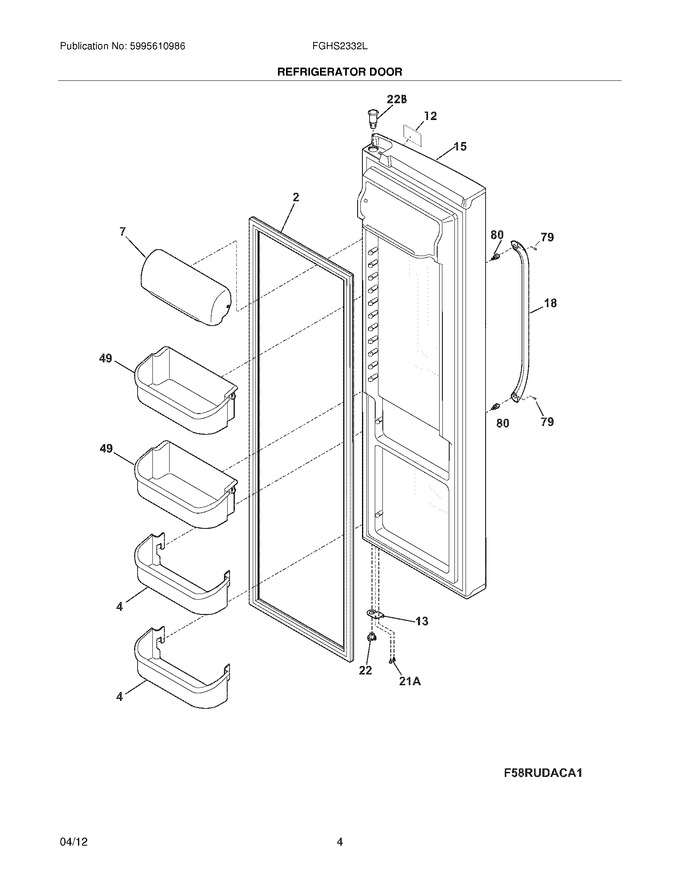

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240363702 | Bin-door,2-liter |
|
Immediately | $ 76.40 | ||||
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 6.90 | ||||
| 13 | 241990201 | Door Stop,black ,ref |
|
$ 21.27 | |||||
| 15 | 242038865 | Door-refr,white (smooth) ,complete Assy |
|
- | |||||
| 18 | 242084501 | Handle-door,white ,refr |
|
$ 179.24 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.09 | |||||
| 49 | 240324502 | Bin-door,gallon |
|
Immediately | $ 102.61 | ||||
| 79 | 218755405 | Screw-set,10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| F2 | 241786015 | Gasket-refr Door,white ,magnetic (Replaces: 241786003) |
|
Immediately | $ 94.66 | ||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- |
