Diagram # Part Number Description Series Availability Ships Price Add to Cart
200 241609201 Light Pipe Special Order $ 12.05

201 242070809 Switch-membrane Special Order $ 122.48

205 242066202 Housing,disp/controls Special Order $ 27.83

F38C 242048304 Board-control Special Order $ 148.84

NI 241510904 Harness-dispenser,grounding Special Order $ 60.96


    View Diagram in Separate Window     Print Icon   Print Part List

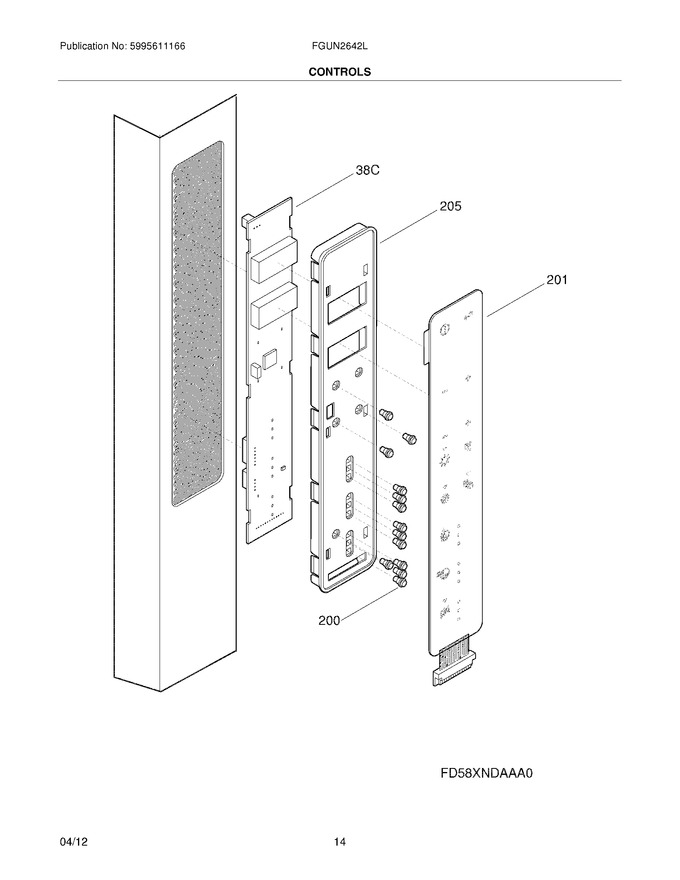

Diagram for FGUN2642LF5
