Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10403811 Instructions, Installation Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 W10392934 Guide, Use & Care Appelez-nous -
1 W10441306 Tech Sheet (induction) Appelez-nous -
1 W10392954 Tech Sheet Appelez-nous -
1 W10400064 Guide, Quick Start (english) Appelez-nous -
2 W10514689 Cooktop (black)   (Replaces: W10401389) Special Order $ 642.45

3 WP3195060 Hinge, Cooktop   (Replaces: 3195060) In-Stock Immediately $ 11.30

4 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.16

5 W10818314 Board, Display Ui-g8   (Replaces: W10390744) Special Order $ 293.64

6 WPW10410578 Hotplate (left Rear)   (Replaces: W10410578) Special Order $ 277.41

7 WPW10410580 Hotplate (left Front & Right)   (Replaces: W10410580) Special Order $ 219.30

8 WPW10410579 Hotplate (right Rear)   (Replaces: W10410579) Special Order $ 231.72

9 W11447673 Bracket, Anti-tip   (Replaces: W10306542) In-Stock Immediately $ 28.64

10 WP7101P485-60 Screw, Anti-tip   (Replaces: 7101P485-60) Special Order $ 26.33


    View Diagram in Separate Window     Print Icon   Print Part List

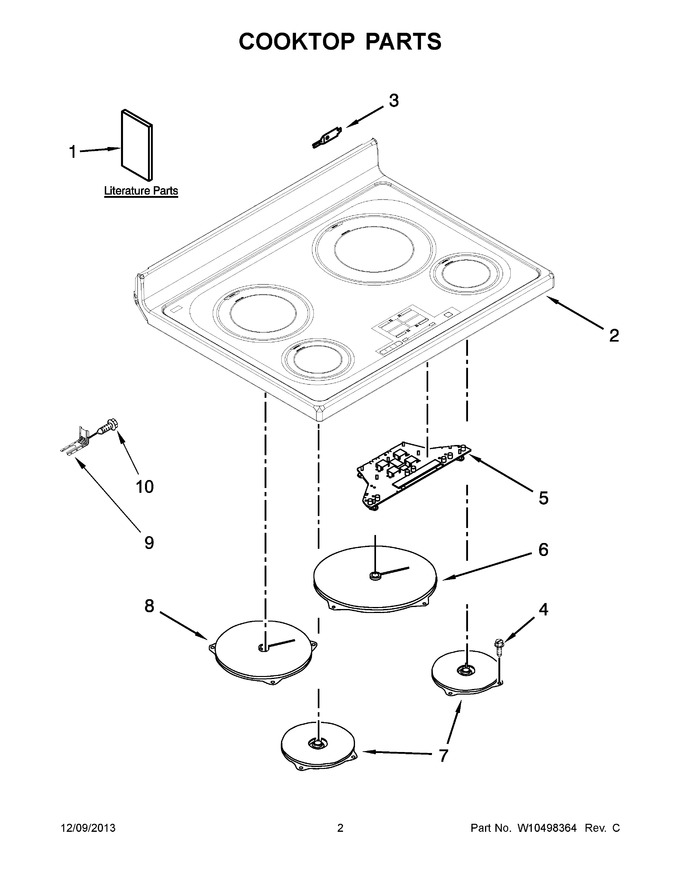

Diagram for WFI910H0AS0
