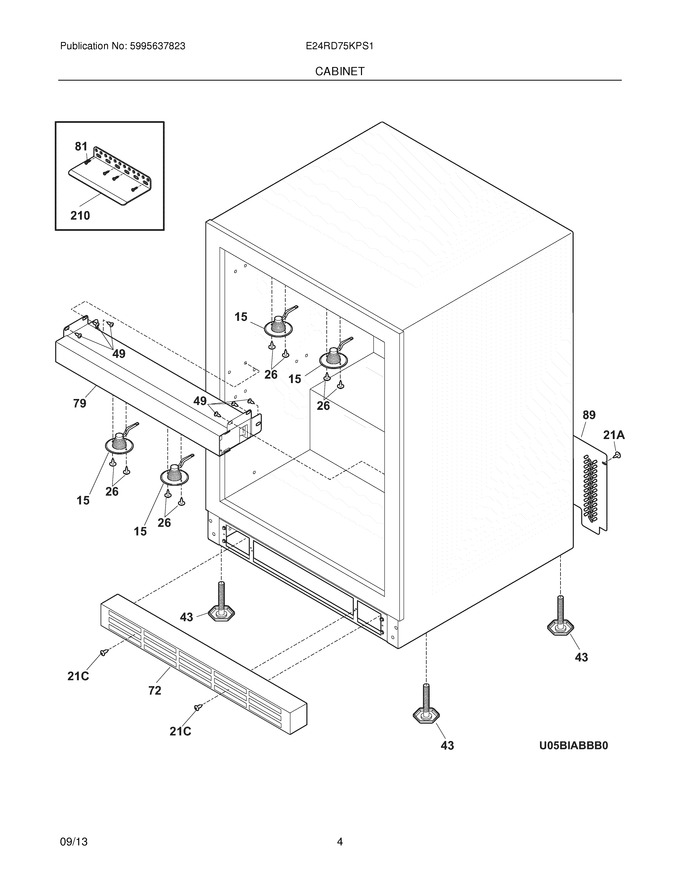

05 - Cabinet
07 - System
08 - Wiring Schematic
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | 241904301 | Screw,led Lighting |
|
- | |||||
| 43 | 241911501 | Leveling Leg,screw |
|
$ 4.06 | |||||
| 49 | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) |
|
$ 12.05 | |||||
| 72 | 241908403 | Grille/kickplate,stainless |
|
- | |||||
| 79 | 241960402 | Mullion,black |
|
$ 237.49 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 89 | 241898002 | Cover-access |
|
- | |||||
| 210 | 241903801 | Bracket-anti Tip |
|
$ 61.20 | |||||
| 21A | 241906101 | Screw-no.10 X 3/4 Tek |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| F15 | 5304520842 | Light Assembly,led ,(4) (Replaces: 241904202) |
|
$ 215.46 | |||||
| FNI | 241900701 | Harness-intermediate, Uc,led Lighting |
|
$ 24.22 | |||||
| NI | 218515401 | Clip-grille |
|
$ 17.72 |
