01 - Cover Sheet


02 - Control Panel

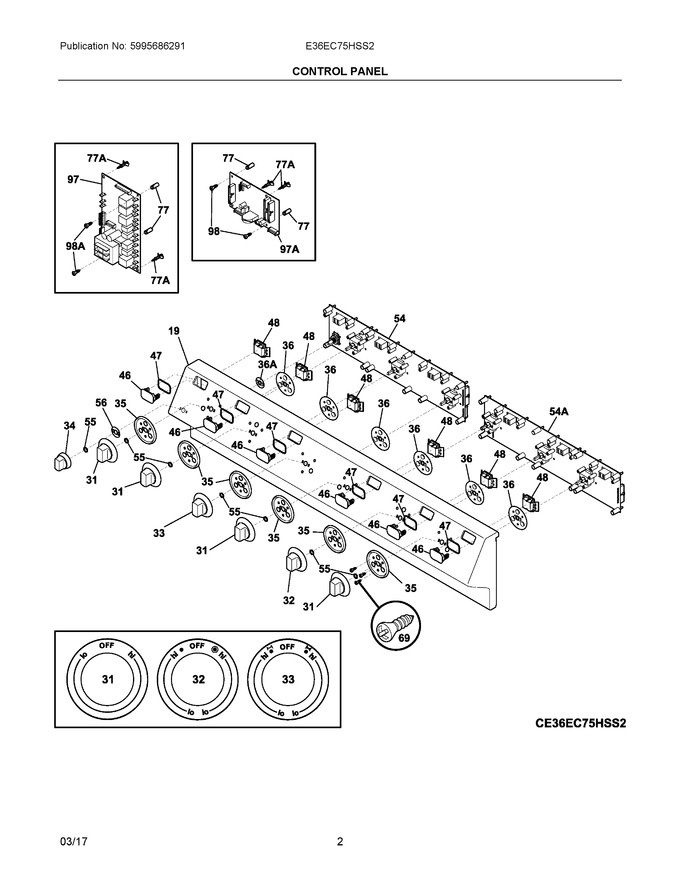

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318234910		Panel, Control, Stainless				$ 978.71
31	318242250		Knob, Control, Stainless, (4)				$ 282.33
32	318242251		Knob, Control, Stainless, Dual				$ 165.17
33	318242257		Knob, Control, Stainless, Bridge		Appelez-nous	-
34	318314705		Knob, Selector, Stainless				$ 100.51
35	318251905		Skirt, (6)		Appelez-nous	-
36	318146305		Bushing, (6)		Appelez-nous	-
46	318319020		Lens, Indicator Light, (6)				$ 31.90
47	318367101		Clamp, Lens				$ 25.46
48	318337101		Gasket, O'ring				$ 4.83
54	316541810		Control Assembly, Lh, W/potentiometer				$ 213.13
55	316247700		Nut, Mounting				$ 18.20
56	318086006		Flat Washer, Stainless		Appelez-nous	-
69	5304468081		Screw, Mouinting, 6-32 X 3/8, (18)				$ 9.92
77	316247900		Spacer, Power Board				$ 44.65
97	316442113		Board, Power, Relay				$ 269.66
98	5304401490		Screw, 6-18 X 1, (2)		Appelez-nous	-
36A	318146307		Bushing		Appelez-nous	-
54A	316541811		Control Assembly, Rh, W/potentiometer				$ 209.60
77A	316114100		Spacer				$ 60.96
97A	316575420		Board, Power, Uib				$ 238.56
98A	5304400427		Screw, 6-20 X 1/2, (8)		Appelez-nous	-
NI	5304400192		Retainer, Wiring		Appelez-nous	-
NI	08016432		Screw, Truss Head, 8-18 X 0.375		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	318083058		Wiring Harness, Interface, To Power Relay				$ 117.23
NI	318402301		Wiring Harness, Interface, Uib Board, To Lh/rh Cntrl				$ 130.04
NI	318402302		Wiring Harness, Interface, Uib Board, To Rh Control				$ 237.96
NI	318402331		Wiring Harness, Interface, Uib Board, To Lh Control				$ 226.99
NIA	316247800		Washer, Lock, Mtg				$ 18.20
