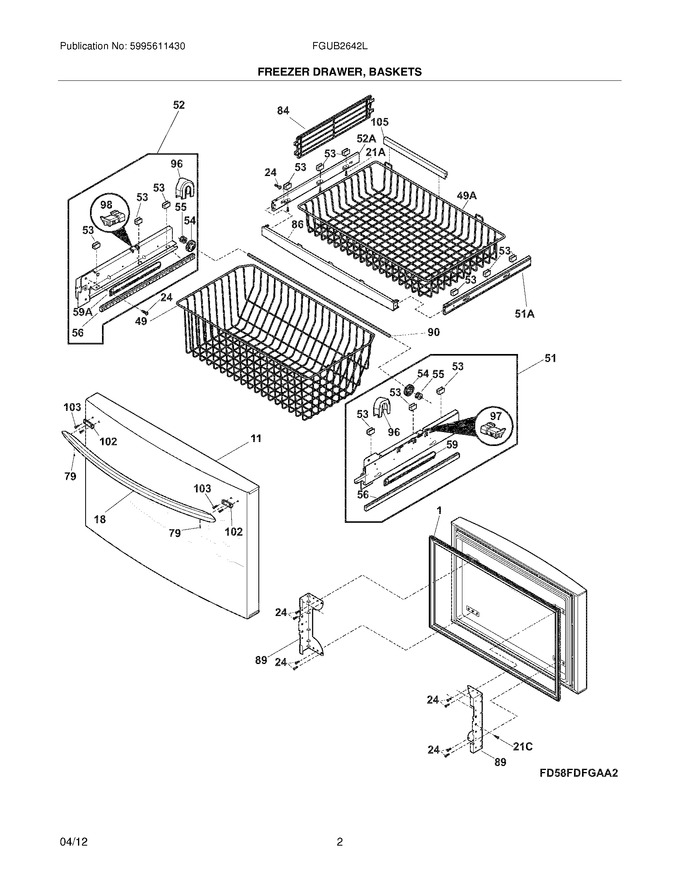

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241987914 | Door-frzr,black (smooth) ,complete Assy |
|
$ 404.30 | |||||
| 18 | 242029403 | Handle-door,black |
|
$ 177.46 | |||||
| 24 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 49 | 242026802 | Basket-frzr,lower |
|
$ 216.41 | |||||
| 51 | 241883604 | Slide Assembly,basket Lower ,rh ,freezer Drawer |
|
Immediately | $ 287.06 | ||||
| 52 | 241883704 | Slide Assembly,basket Lower ,lh ,freezer Drawer |
|
$ 350.37 | |||||
| 53 | 241824201 | Retainer-basket |
|
$ 63.89 | |||||
| 54 | 241770201 | Pinion |
|
$ 34.73 | |||||
| 55 | 241770301 | Pinion-idler |
|
$ 21.97 | |||||
| 56 | 242158001 | Rack-drawer Travel |
|
$ 43.89 | |||||
| 59 | 5304474655 | Closure,drawer (Replaces: 241979702) |
|
$ 70.88 | |||||
| 79 | 218755405 | Screw-set,10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 84 | 241780904 | Divider,basket ,upper (Replaces: 241780901) |
|
$ 71.29 | |||||
| 86 | 242090701 | Bar-stabilizer,freezer Drawer |
|
$ 63.32 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 241770703 | Bar-timing |
|
$ 35.07 | |||||
| 96 | 241973501 | Cover-pinion (Replaces: 242156901) |
|
$ 57.27 | |||||
| 97 | 241926401 | Actuator,rh ,white ,light |
|
$ 17.54 | |||||
| 98 | 241926402 | Actuator,lh ,white ,light |
|
$ 16.55 | |||||
| 102 | 242029301 | Block-handle Mtg |
|
$ 24.80 | |||||
| 103 | 242077302 | Screw,no.10 Ab Flat Hd |
|
Immediately | $ 7.79 | ||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 21C | 241899703 | Screw,truss Head ,no.10-32 X 1/4 ,zinc |
|
$ 15.92 | |||||
| 49A | 241780809 | Basket-frzr,upper |
|
$ 146.95 | |||||
| 51A | 241894223 | Slide Assembly,basket ,rh ,freezer Drawer (Replaces: 241894201) |
|
Immediately | $ 132.53 | ||||
| 52A | 5304491063 | Slide Assembly,basket ,lh ,freezer Drawer (Replaces: 241894203) |
|
$ 155.21 | |||||
| 59A | 241979701 | Closure,drawer |
|
- | |||||
| F1 | 5304537408 | Gasket-frzr Drawer,black ,magnetic (Replaces: 241778304) |
|
Immediately | $ 86.28 | ||||
| F21C | 5304497384 | Plate,tapping (Replaces: 242147601) |
|
$ 15.60 | |||||
| NI | 241601001 | Wrench,allen |
|
- | |||||
| NI | 242146401 | Screw,hex Whd ,1/4-20 X 3/8`` ,connects Frz,rails To Door ,(4) (Replaces: 241899602) |
|
Immediately | $ 14.27 | ||||
| NI | 241979601 | Bumper,rubber |
|
$ 22.68 | |||||
| NI | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 19.85 | |||||
| NI | 242039701 | Screw |
|
$ 13.46 |
