SELECT A DIAGRAM

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Oven Door And Drawer Parts


07 - Optional Parts (not Included)

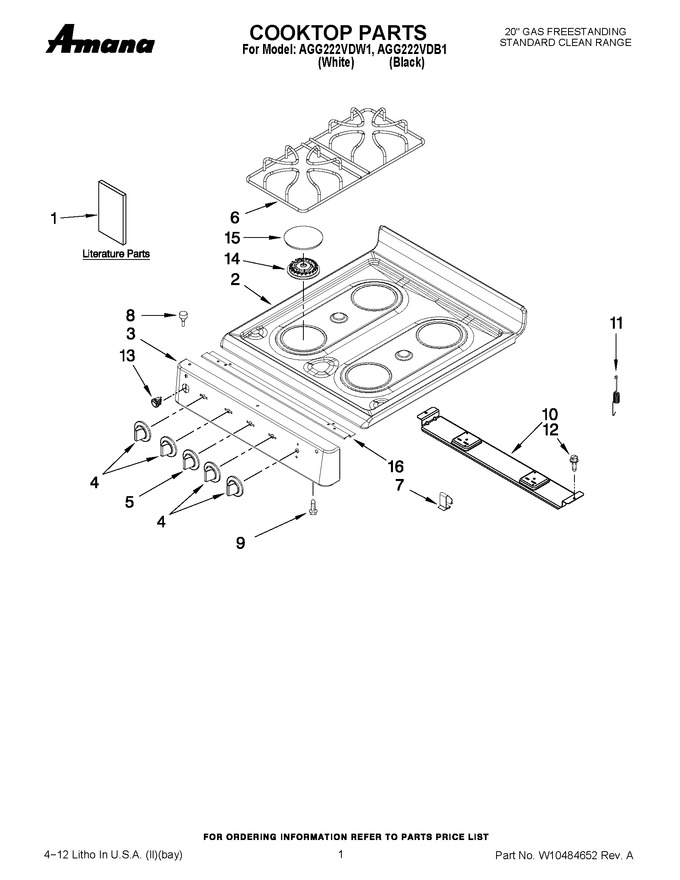

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452012		Guide, Use & Care		Appelez-nous	-
1	98007032		Tech Sheet		Appelez-nous	-
1	98007130		Safer Cooking Tips		Appelez-nous	-
1	W10459123		Instructions Installation		Appelez-nous	-
2	WPW10179560		Cooktop (white)   (Replaces: W10179560)				$ 283.04
2	WPW10180088		Cooktop (black)   (Replaces: W10180088)				$ 152.24
3	WPW10322512		Panel, Manifold (black)   (Replaces: W10322512)				$ 136.78
3	W10225327		Panel, Manifold (white)		Appelez-nous	-
4	WP98006100		Knob, Burner (black)   (Replaces: 98006100)				$ 18.09
4	WP98006102		Knob, Burner (white)   (Replaces: 98006102)				$ 17.53
5	WP98008320		Knob, Thermostat (black)   (Replaces: 98008320)				$ 18.32
5	WP98008321		Knob, Thermostat (white)   (Replaces: 98008321)				$ 18.06
6	WPW10180089		Set, Grate Burner   (Replaces: W10180089)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	W10207167		Bumper, Cooktop		Appelez-nous	-
9	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
10	98012912		Support, Burner		Appelez-nous	-
11	W11229684		Spring, Cooktop   (Replaces: 98004722)				$ 10.67
12	W10837731		Screw   (Replaces: 98006633)				$ 7.07
13	98011569		Switch, Rocker (black)		Appelez-nous	-
13	98011571		Switch, Rocker (white)		Appelez-nous	-
14	WPW10243396		Burner   (Replaces: W10243396)				$ 81.38
15	WP98017461		Cap, Burner   (Replaces: 98017461)				$ 60.75
16	W10222744		Mnfld., Z Brkt.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
