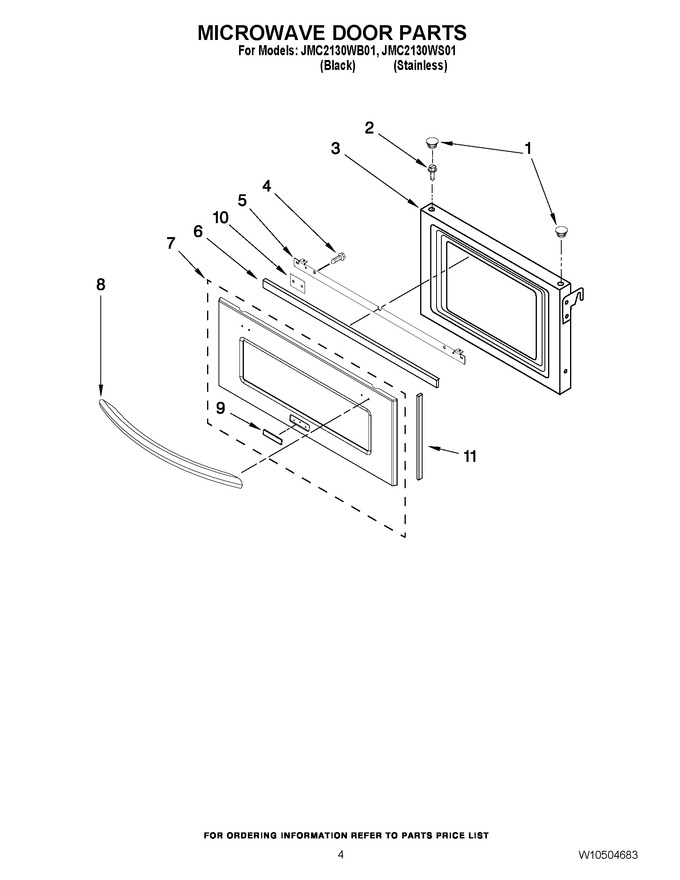

03 - Microwave Door Parts
04 - Cabinet And Stirrer Parts
05 - Internal Microwave Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Button, Plug (Replaces: 8304588BL) |
|
$ 10.58 | |||||
| 2 | WPW10068250 | Screw (Replaces: W10068250) |
|
$ 3.66 | |||||
| 3 | W11684570 | Door, Microwave (Replaces: W10288012) |
|
Immediately | $ 508.92 | ||||
| 4 | W10267047 | Screw |
|
$ 11.55 | |||||
| 5 | W10176199 | Bracket, Handle |
|
$ 36.15 | |||||
| 6 | W10312432 | Foam, Pad |
|
- | |||||
| 7 | WPW10176200 | Glass Assembly (black) (Replaces: W10176200) |
|
$ 385.19 | |||||
| 7 | W10269421 | Glass Assembly (stainless) |
|
- | |||||
| 8 | W10186756 | Handle, Door (stainless) |
|
$ 139.42 | |||||
| 8 | W10186755 | Handle, Door (black) |
|
$ 240.68 | |||||
| 9 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 73.67 | |||||
| 9 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 73.67 | |||||
| 10 | W10314607 | Foam, Bracket (black Model) |
|
- | |||||
| 10 | W10176201 | Foam, Bracket (stainless Model) |
|
$ 7.82 | |||||
| 11 | W10209070 | Foam, Side |
|
- |
