01 - Cover
03 - Dry Cab,heater
05 - Frnt Pnl,door
07 - Control Panel
09 - Motor,blower
SELECT A DIAGRAM
New Model Search:

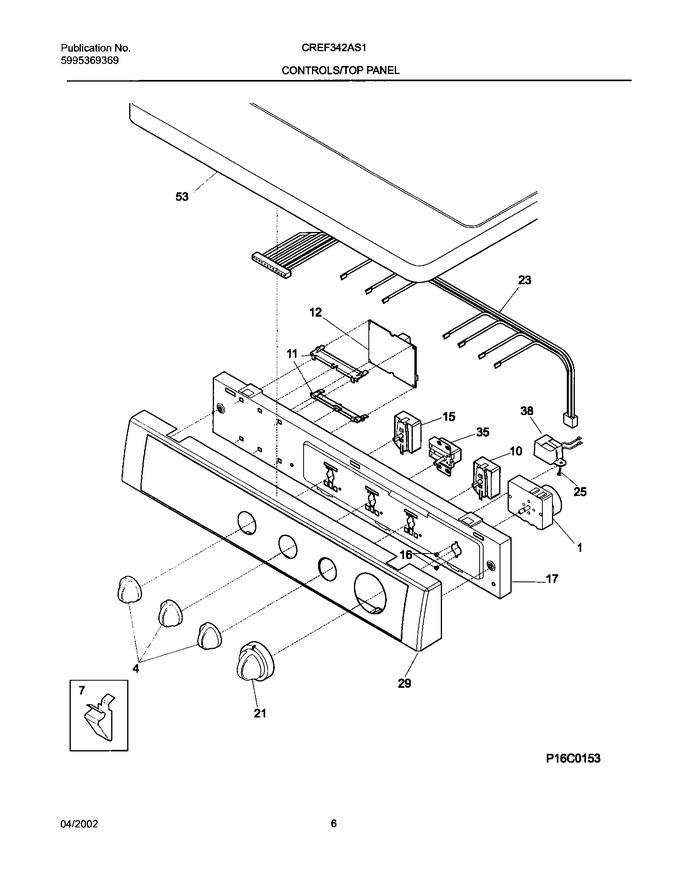

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131789200 | Timer-l-dryer Elec/gas |
|
Immediately | $ 234.23 | ||||
| 4 | 134042800 | Knob-rot-stk Dry-wht |
|
Immediately | $ 50.61 | ||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 11 | 131587400 | Bracket-control Board,(2) |
|
$ 44.40 | |||||
| 15 | 131777900 | Switch-temp 4 Pos Rot |
|
$ 126.42 | |||||
| 16 | 134034300 | Screw, Cr Pan Hd, 8-32 X 0.250, Thrd Forming |
|
- | |||||
| 17 | 134064501 | Brkt-cont Mtg-stack Dryer |
|
$ 76.13 | |||||
| 21 | 131873500 | Asmy-knob-stack Dry-wht/dk Gry (Replaces: 134042600) |
|
Immediately | $ 49.62 | ||||
| 25 | 5303015671 | Screw,8-18 X .375 |
|
- | |||||
| 29 | 131666945 | Asmy-cons Frame/tape/trim,29 |
|
- | |||||
| 53 | 134086812 | Panel-top Stack Dryer Wht |
|
$ 336.42 | |||||
| F10 | 134398300 | Switch-start (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| F12 | 131620200 | Control Board,moisture Sensor |
|
- | |||||
| F23 | 134063800 | Harness-cont Lsh |
|
$ 240.61 | |||||
| F35 | 131243200 | Switch-2pos Temp/bzr/xtra Rins |
|
- | |||||
| F38 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| NI | 134110500 | Harness-main Stack |
|
$ 251.95 |
