Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9763501BL		Support, Front & Rear				$ 43.72
2	4453720		Brace, Drawer (right)				$ 34.27
2	4453721		Brace, Drawer (left)				$ 34.27
3	9759953		Side, Base (right)				$ 108.70
3	9759954		Side, Base (left)				$ 88.47
4	WPW10058460		Foot   (Replaces: W10058460)			Immediately	$ 7.07
5	WP3196037		Foot Assembly   (Replaces: 3196037)				$ 74.67
6	W10164163		Drawer				$ 163.91
7	WPW10155632		Guide, Roller Includes Roller (left)   (Replaces: W10155632)				$ 93.18
7	W10155633		Guide, Roller Includes Roller (right)				$ 60.39
8	W10164169		Panel, Drawer		Appelez-nous	-
9	W10246103		Front, Drawer		Appelez-nous	-
10	W10246102A		Handle, Drawer   (Replaces: W10246102)		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
12	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 172.85
13	W10207401		Element, Warming				$ 105.28
14	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
15	9758676		Support, Element		Appelez-nous	-
16	9761796		Enclosure, Warming Drawer				$ 78.12
17	W10153099		Cover, Access		Appelez-nous	-
18	WP3400805		Screw   (Replaces: 3400805)				$ 6.47
19	W11190816		Spacer, Handle   (Replaces: 3823F017-45)				$ 14.94

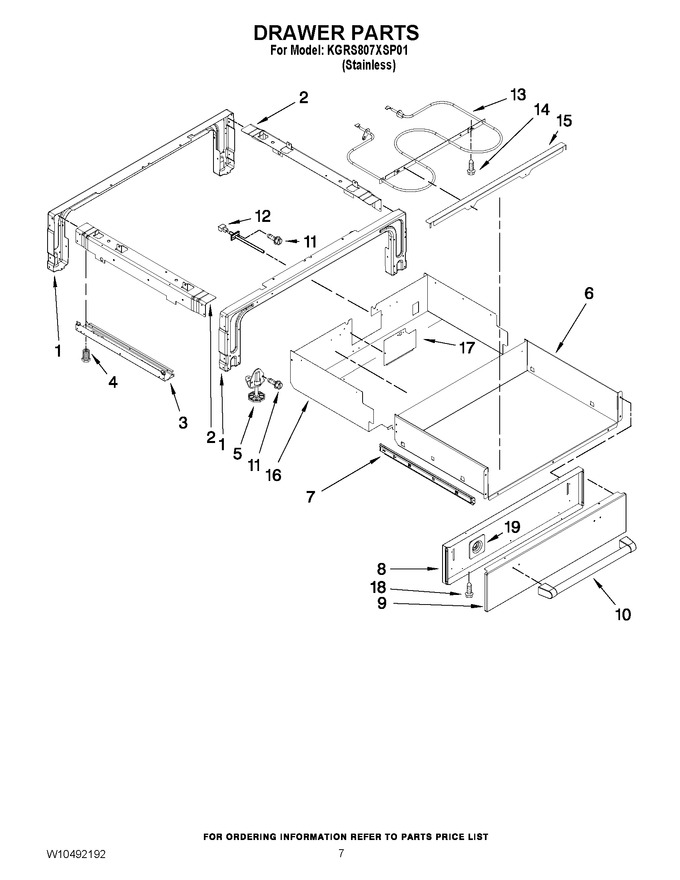

    View Diagram in Separate Window       Print Part List
