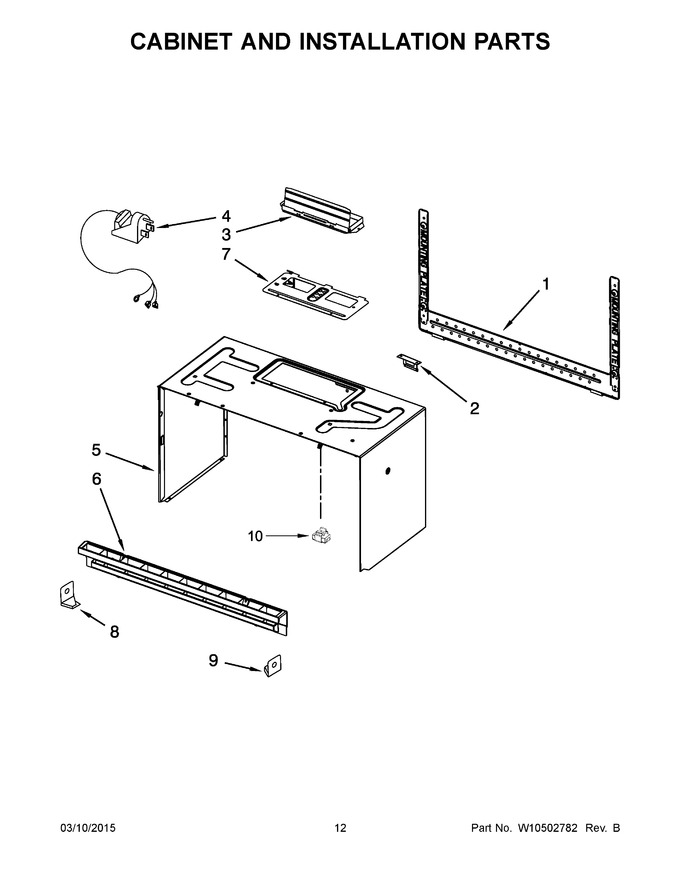

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 21.16
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10269470)				$ 18.48
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 250.22
6	W10245217		Grille, Vent (white)				$ 90.84
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10830163		Vent Holder, Left (black)   (Replaces: W10406308)				$ 12.18
9	W10810989		Vent Holder, Right (black)   (Replaces: W10406307)				$ 8.76
10	W10110862		Mounting Nut		Appelez-nous	-
5A	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 255.01
6A	W10245218		Grille, Vent (black)				$ 89.96
6B	W10452075		Grille, Vent (stainless)		Appelez-nous	-
6C	W10315776		Grille, Vent (universal Silver)		Appelez-nous	-
NI	W10821385		Miscellaneous Parts, Installation, Hardware   (Replaces: 8206614)			Immediately	$ 88.90
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 6.47
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10540464		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10539841		Miscellaneous Parts, Harness, Hood Lamp And Turntable Motor				$ 17.98
NI	W10539842		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer				$ 14.31
NI	W10539846		Miscellaneous Parts, Harness, Message Wire		Appelez-nous	-
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 21.50
