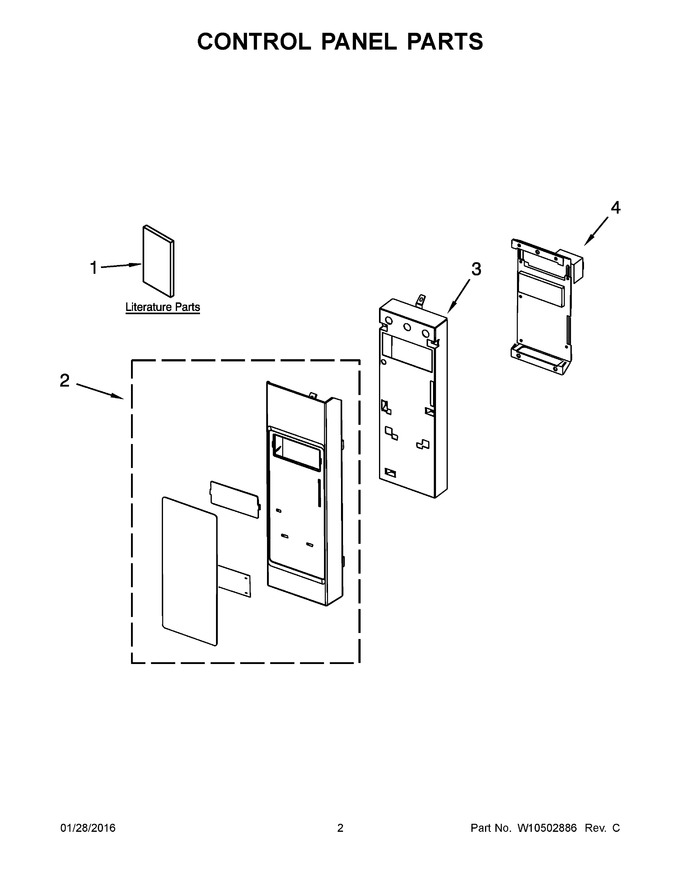

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10247296 | Installation Instructions |
|
- | |||||
| 2 | W10247756 | Control Panel Assembly (includes Lens And Membrane Switch) (white) |
|
- | |||||
| 3 | W10364232 | Bracket, Control |
|
- | |||||
| 4 | W10502906 | Microcomputer |
|
- | |||||
| 1A | W10182518 | Use And Care Guide |
|
- | |||||
| 1B | W10197637 | Cook Guide Label |
|
- | |||||
| 1C | W10325272 | Tech Sheet |
|
- | |||||
| 2A | W10247752 | Control Panel Assembly (includes Lens And Membrane Switch) (black) |
|
- | |||||
| 2B | W10247759 | Control Panel Assembly (includes Lens And Membrane Switch) (biscuit) |
|
- | |||||
| 2C | W10286605 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) |
|
- |
