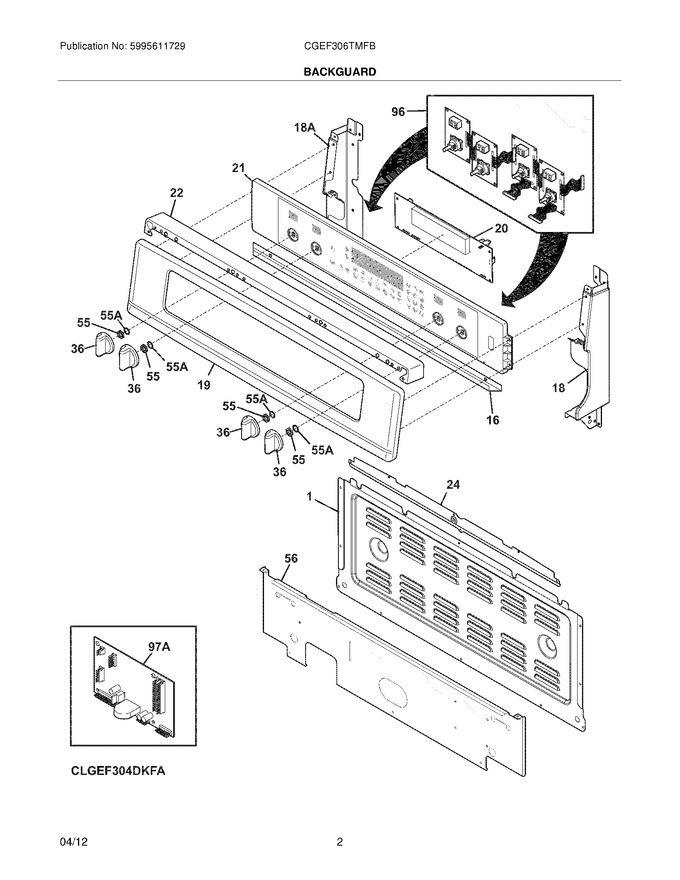

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314111		Panel,cover ,upper		Appelez-nous	-
16	318571400		Brace,control Panel		Appelez-nous	-
18	318311934		End Cap,backsplash ,black ,rh				$ 55.39
19	318573502		Panel,control ,stainless				$ 242.13
22	318413501		Cap,top ,black ,backguard				$ 64.44
24	318566201		Trim,back ,upper		Appelez-nous	-
36	316575202		Knob,control ,stainless				$ 100.38
55	316247700		Nut,mounting				$ 18.20
56	318534932		Shield,backguard ,black ,inner		Appelez-nous	-
18A	318311935		End Cap,backsplash ,black ,lh				$ 55.39
55A	316247800		Washer,lock ,mtg				$ 18.20
F20	316443865		Control,electronic ,es610w10 ,dual Oven				$ 315.44
F21	318566008		Timer Assembly,es610w5 ,black ,w/overlay				$ 381.26
F96	318411411		Control Assembly,complete ,rotary ,w/4 Controls				$ 310.04
F97A	316442063		Board,power ,uib				$ 100.68
FNI	318578354		Harness,wiring ,uib ,to Relay Board				$ 53.24
FNI	318578355		Harness,wiring ,main ,backguard				$ 59.90
FNI	318578352		Harness,wiring ,controller ,to Relay Board				$ 172.15
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318573700		Bracket,control Panel		Appelez-nous	-
