SELECT A DIAGRAM

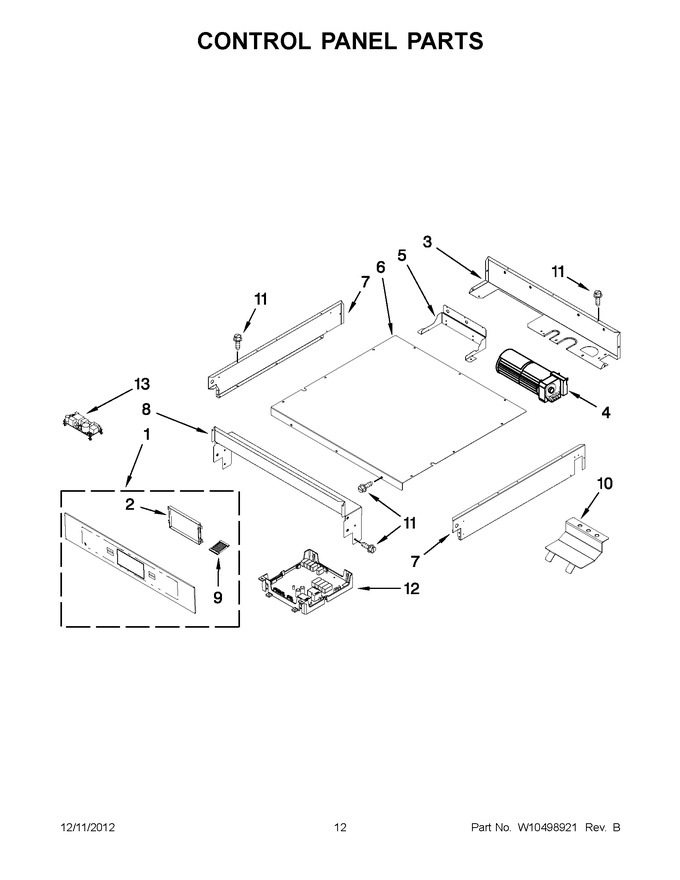

01 - Upper Oven Parts


02 - Lower Oven Parts


03 - Upper Oven Door


04 - Lower Oven Door


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10344542		Assembly, Control Panel (black)		Appelez-nous	-
1	W10344142		Assembly, Control Panel (stainless)		Appelez-nous	-
2	W10344082		Assembly, Ui Extended				$ 560.32
3	W10187048		Panel, Control Box Rear		Appelez-nous	-
4	WPW10273666		Blower (lower)   (Replaces: W10273666)			Immediately	$ 293.73
4	WPW10273667		Blower (upper)   (Replaces: W10273667)			Immediately	$ 269.68
5	W10186997		Bracket, Cooling Fan Upper				$ 73.49
5	W10187016		Bracket, Cooling Fan Lower				$ 88.04
6	W10176180		Panel, Control Box Top		Appelez-nous	-
7	W10176002		Panel, Control Box Left Hand		Appelez-nous	-
7	W10176003		Panel, Control Box Right Hand		Appelez-nous	-
8	W10176004		Support, Top Control				$ 14.32
9	W10175829		Cable, User Interface		Appelez-nous	-
10	W10176243		Bracket, Cover (lower Cooling Fan)		Appelez-nous	-
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
12	W10292566		Manager, Appliance				$ 376.13
13	WPW10286791		Supply, Power   (Replaces: W10286791)			Immediately	$ 251.06

    View Diagram in Separate Window       Print Part List
