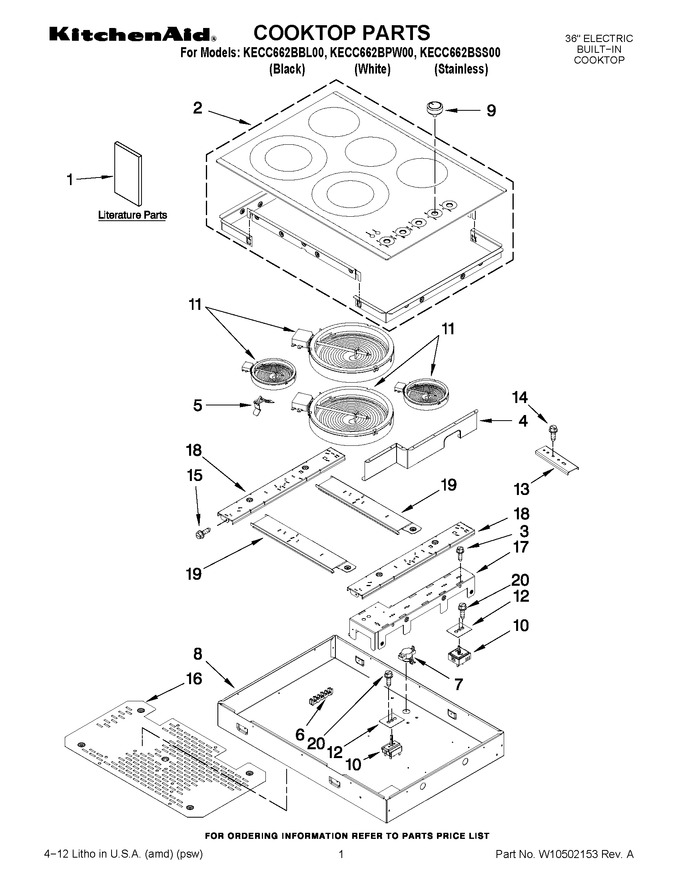

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353374 | Installation Instructions |
|
- | |||||
| 1 | W10351318 | Installation Instructions Undercounter, |
|
- | |||||
| 1 | W10353375 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10352649 | Wiring Diagram |
|
- | |||||
| 2 | W10487913 | Cooktop (stainless) |
|
- | |||||
| 2 | W10505184 | Cooktop (white) (Replaces: W10478460) |
|
- | |||||
| 2 | W10353348 | Cooktop (black) |
|
- | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 13.07 | ||||
| 4 | W10340209 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 7 | W10465323 | Switch, Tod High Limit |
|
- | |||||
| 8 | W10406278 | Box, Burner |
|
- | |||||
| 9 | WPW10353372 | Knob, Control (stainless) (Replaces: W10353372) |
|
$ 19.96 | |||||
| 9 | W10364147 | Knob, Control (black) |
|
$ 32.42 | |||||
| 10 | WP74007840 | Switch, Infinite (rf) (Replaces: 7403P755-60) |
|
Immediately | $ 163.25 | ||||
| 10 | W10861720 | Switch, Infinite (rr) (Replaces: W10312187) |
|
$ 128.64 | |||||
| 10 | W10431995 | Switch, Infinite (cr,lr) |
|
$ 136.64 | |||||
| 10 | WPW10326246 | Switch, Infinite (lf) (Replaces: W10326246) |
|
$ 131.16 | |||||
| 11 | WPW10275049 | Element, Surface (cr,lr) (Replaces: W10275049) |
|
Immediately | $ 282.81 | ||||
| 11 | W11171119 | Element, Surface (lf/rr) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 11 | WP8273993 | Element, Surface (rf) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | W10422069 | Bottom, Heat Shield |
|
- | |||||
| 17 | W10340207 | Plate, Switch |
|
- | |||||
| 18 | W10488702 | Rail, Vertical |
|
- | |||||
| 19 | W10340199 | Rail, Horizontal |
|
- | |||||
| 20 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 |
