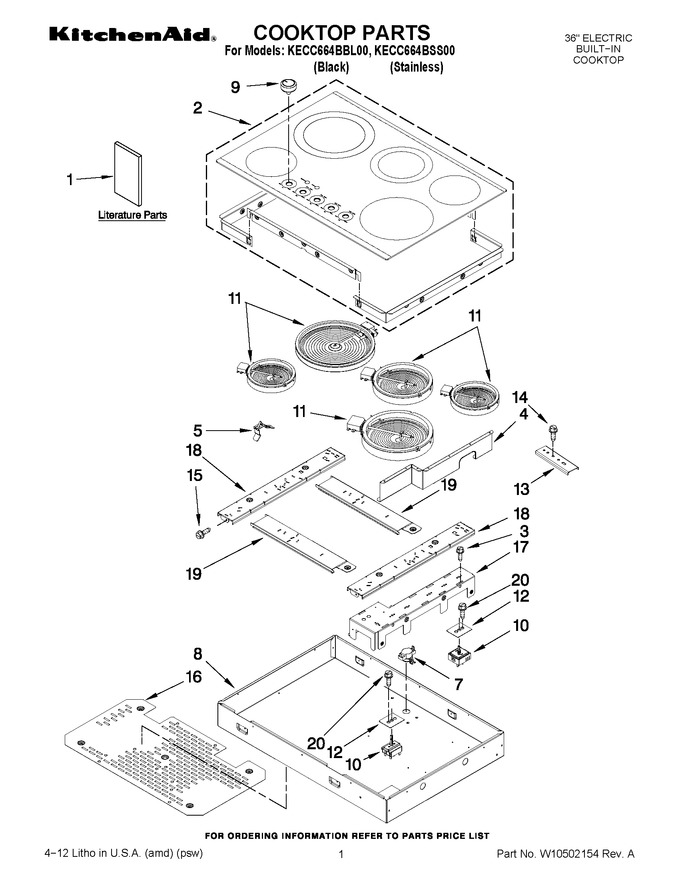

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353374 | Installation Instructions |
|
- | |||||
| 1 | W10351318 | Installation Instructions Undercounter, |
|
- | |||||
| 1 | W10353375 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10352650 | Wiring Diagram |
|
- | |||||
| 2 | W10505189 | Cooktop (stainless) (Replaces: W10487914) |
|
$ 671.98 | |||||
| 2 | W10505188 | Cooktop (black) (Replaces: W10353353) |
|
$ 523.72 | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 13.07 | ||||
| 4 | W10340209 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 7 | W10471482 | Switch, Tod High Limit |
|
Immediately | $ 45.81 | ||||
| 8 | W10340197 | Box, Burner |
|
- | |||||
| 9 | WPW10353372 | Knob, Control (stainless) (Replaces: W10353372) |
|
$ 19.96 | |||||
| 9 | W10364147 | Knob, Control (black) |
|
$ 32.42 | |||||
| 10 | WPW10462778 | Switch, Infinite (rf,rr) (Replaces: W10462778) |
|
$ 130.03 | |||||
| 10 | W11106342 | Switch, Infinite (lf) (Replaces: W10312186) |
|
$ 122.36 | |||||
| 10 | WPW10434447 | Switch, Infinite (cr,lr) (Replaces: W10434447) |
|
$ 121.22 | |||||
| 11 | WPW10245539 | Element, Surface (lf) (Replaces: W10245539) |
|
$ 130.79 | |||||
| 11 | WPW10245533 | Element, Surface (cr) (Replaces: W10245533) |
|
$ 223.04 | |||||
| 11 | WPW10342780 | Element, Surface (rr) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 11 | WPW10251108 | Element, Surface (rf) (Replaces: W10251108) |
|
Immediately | $ 201.29 | ||||
| 11 | WPW10204680 | Element, Surface (lr) (Replaces: W10204680) |
|
Immediately | $ 346.07 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 16 | W10422069 | Bottom, Heat Shield |
|
- | |||||
| 17 | W10340207 | Plate, Switch |
|
- | |||||
| 18 | W10488702 | Rail, Vertical |
|
- | |||||
| 19 | W10340199 | Rail, Horizontal |
|
- | |||||
| 20 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 |
