01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Rack Parts


05 - Door Parts


06 - Optional Parts (not Included)

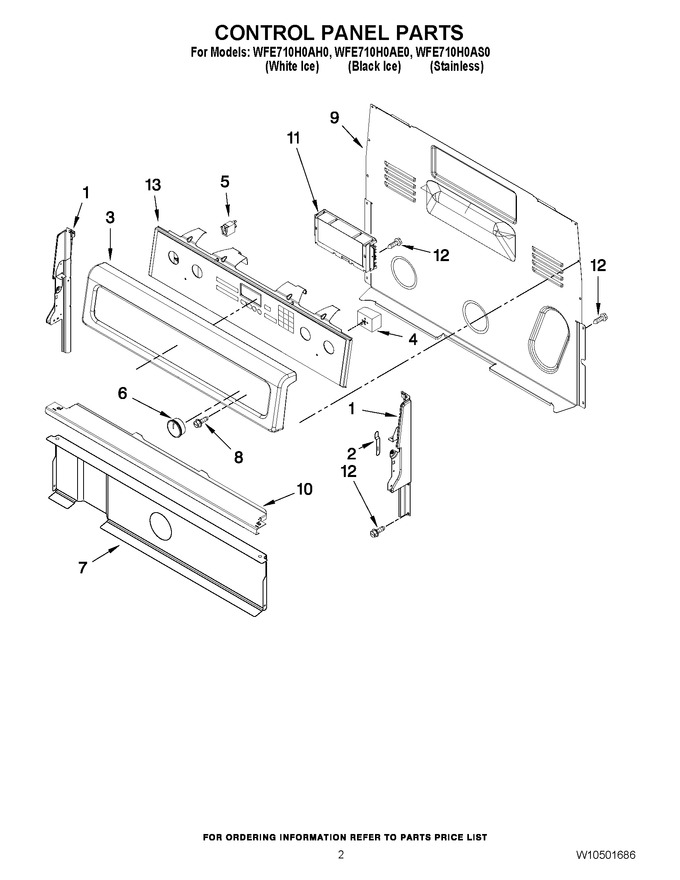

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 131.85
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 36.39
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 36.40
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 52.14
2	3196200		Clip, Spring				$ 8.96
3	WPW10318551		Panel, Backguard (black)   (Replaces: W10318551)				$ 233.50
3	WPW10318552		Panel, Backguard (white)   (Replaces: W10318552)			Immediately	$ 242.12
3	WPW10318550		Panel, Backguard (stainless)   (Replaces: W10318550)				$ 234.20
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148951)			Immediately	$ 47.15
4	WPW10434452		Switch, Infinite (left & Right Front)   (Replaces: W10434452)			Immediately	$ 126.76
4	WPW10411934		Switch, Infinite (left Rear)   (Replaces: W10411934)			Immediately	$ 98.45
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 77.68
6	WPW10430806		Knob   (Replaces: W10430806)			Immediately	$ 22.38
7	W10134247		Shield, Heat			Immediately	$ 307.56
8	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
9	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 187.75
10	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 84.73
11	WPW10340304		Control, Range (mrc)   (Replaces: W10340304)			Immediately	$ 399.20
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
13	W10347929		Overlay, Active (white Chromium)				$ 242.61
13	W10347930		Overlay, Active (stainless)			Immediately	$ 301.53
