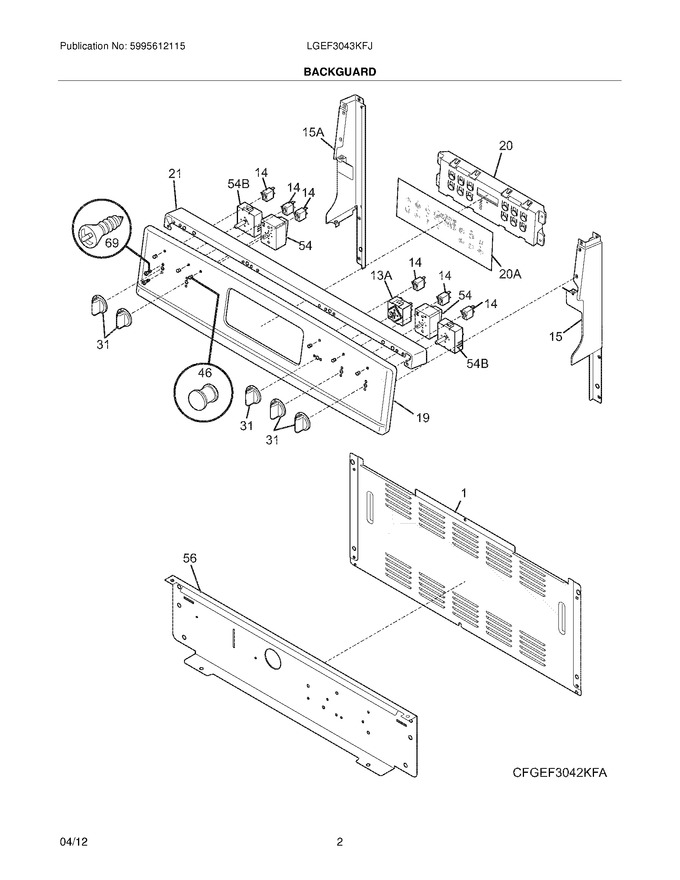

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316557600 | Shield,rear Wall |
|
$ 70.04 | |||||
| 14 | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316546702 | Cap,backguard ,black ,rh End |
|
$ 52.55 | |||||
| 19 | 316572418 | Panel,backguard ,stainless |
|
$ 264.02 | |||||
| 21 | 316546605 | Cap,backguard ,black ,top (Replaces: 316546601) |
|
$ 66.91 | |||||
| 31 | 316564402 | Knob,control ,black ,(5) |
|
$ 46.24 | |||||
| 46 | 316557300 | Lens-light/lamp,indicator ,clear |
|
Immediately | $ 16.77 | ||||
| 54 | 316436000 | Switch,infinite ,small Element |
|
Immediately | $ 80.34 | ||||
| 56 | 316234045 | Shield,backguard ,black ,inner (Replaces: 316234013) |
|
$ 66.74 | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 15A | 316546703 | Cap,backguard ,black ,lh End |
|
$ 64.47 | |||||
| 20A | 316419353 | Overlay,clock ,black ,es330isb (Replaces: 316419342) |
|
Immediately | $ 39.43 | ||||
| F13A | 5304508926 | Switch,infinite ,warmer (Replaces: 316095503) |
|
Immediately | $ 84.18 | ||||
| F20 | 5304510064 | Clock/timer,electronic ,es330 (Replaces: 316557236) |
|
Immediately | $ 336.49 | ||||
| F54B | 316238201 | Switch,infinite Radian ,dual |
|
Immediately | $ 89.00 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 |
