SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

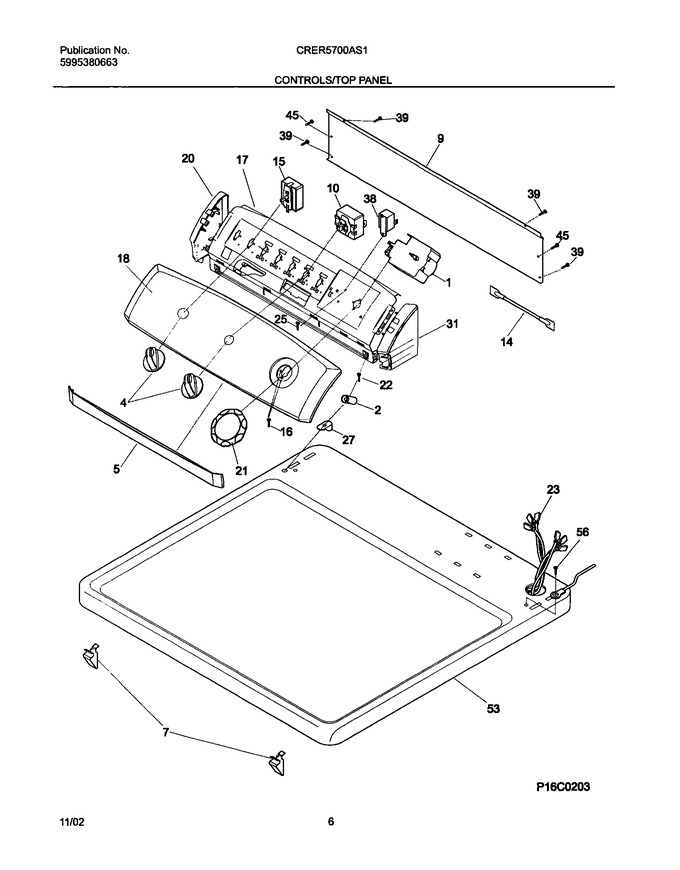

07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer			Immediately	$ 269.37
2	134096100		Spacer,console Mtg				$ 13.55
4	134844410		Knob,rotary ,white   (Replaces: 134034900)			Immediately	$ 57.36
5	134019900		Closure,console Trim ,front				$ 66.68
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	131992900		Panel,backsheet ,console				$ 72.66
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131993010		Bracket,control Mtg.		Appelez-nous	-
18	134155400		Trimplate Fde/b2pshz		Appelez-nous	-
20	134019610		End Cap,white ,lh				$ 46.31
21	134886700		Knob,timer ,white/gray   (Replaces: 134035500)				$ 60.01
22	131266300		Screw,cr Oval Head ,8-18ab X 1.250 ,black		Appelez-nous	-
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
31	134019600		End Cap,white ,rh				$ 46.10
39	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,brkt-to-top Pnl				$ 10.46
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F14	3205243		Resistor,power ,4.4 Kilohm ,with Terminal		Appelez-nous	-
F15	131259200		Switch, Temperature				$ 92.03
F23	134109600		Harness-fsd Wsh/psh Elec		Appelez-nous	-
F38	5303210285		Buzzer				$ 65.78

    View Diagram in Separate Window       Print Part List
