SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

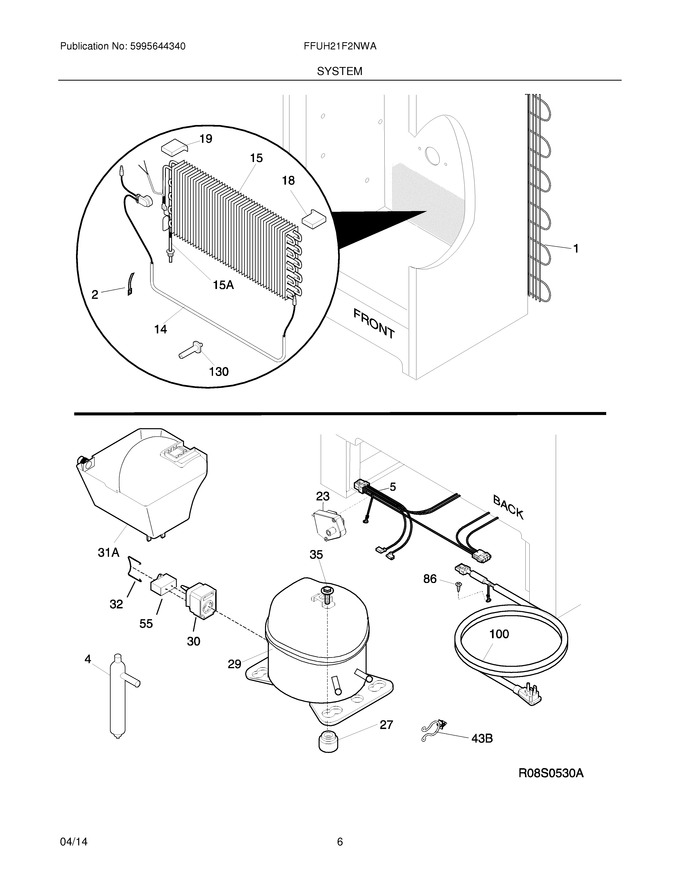

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 216987501)			Immediately	$ 31.67
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954218		Controller				$ 91.01
32	216954300		Clip,controller				$ 17.01
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
55	297286803		Capacitor-run,15 Mf   (Replaces: 216985001)			Immediately	$ 28.77
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 91.82
31A	297217002		Pan-drain   (Replaces: 297217000)				$ 34.25
43B	297315800		Clip,wire				$ 10.13
F1	5300083897		Condenser				$ 538.37
F100	297366805		Cord-power   (Replaces: 297169904)				$ 68.68
F14	5304496284		Defrost Heater,w/thermostat ,termination Swt   (Replaces: 297348700)			Immediately	$ 110.30
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F23	5304518034		Timer,defrost ,115v ,tab   (Replaces: 297318010)			Immediately	$ 57.55
F29	240550948		Compressor,w/o Electricals   (Replaces: 297223500)			Immediately	$ 292.50
F5	297170200		Harness-main				$ 78.13
NI	297014702		Plug-suction Line				$ 9.41
NI	297102800		Spacer-tube		Appelez-nous	-
NI	297018400		Thermistor			Immediately	$ 79.52
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	216502500		Sleeve,suction Line				$ 10.85
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
