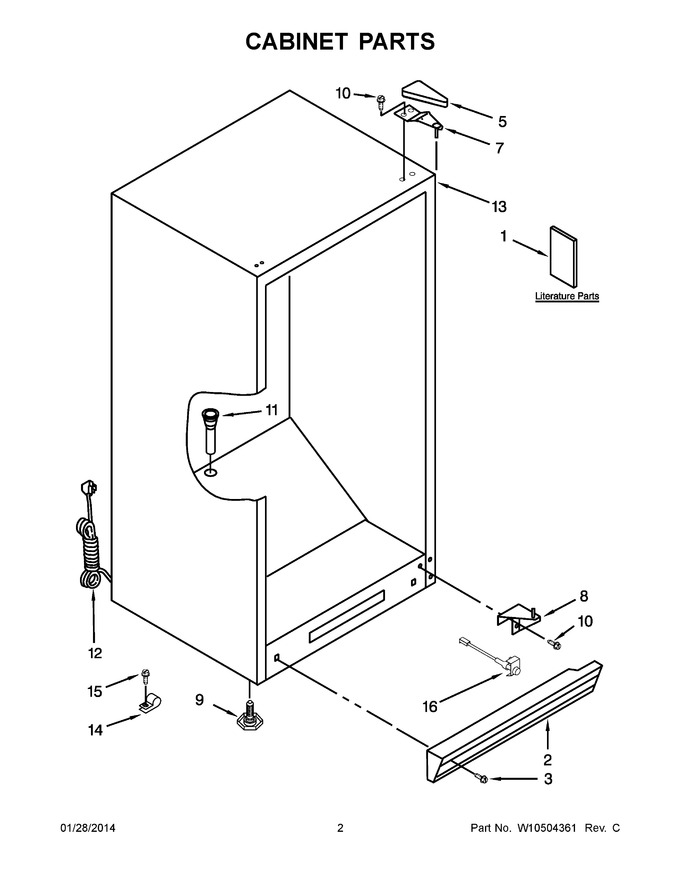

02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326811		Energy Label/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	4-80502-119		Trim, Toe (white)		Appelez-nous	-
3	WP489478		Screw   (Replaces: 3-24004-107)				$ 6.98
5	3-80838-003		Cover, Hinge (white)				$ 4.50
7	2-81016-105		Hinge, Top (white)				$ 37.06
8	8210238		Hinge, Bottom (white)   (Replaces: 4-82693-001)				$ 38.28
9	WP3-82710-001		Leg, Leveler (black)   (Replaces: 3-82710-001)			Immediately	$ 18.29
10	WP8204624		Screw   (Replaces: 1-80271-103)				$ 14.99
11	3-60696-001		Grommet, Drain				$ 32.33
12	4-82399-001		Cord, Power				$ 52.24
13	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	3-25095-011		Clamp, Tube		Appelez-nous	-
15	WP489478		Screw   (Replaces: 3-24004-107)				$ 6.98
16	3-82130-001		Assembly, Power Warning Light Bracket				$ 76.33
