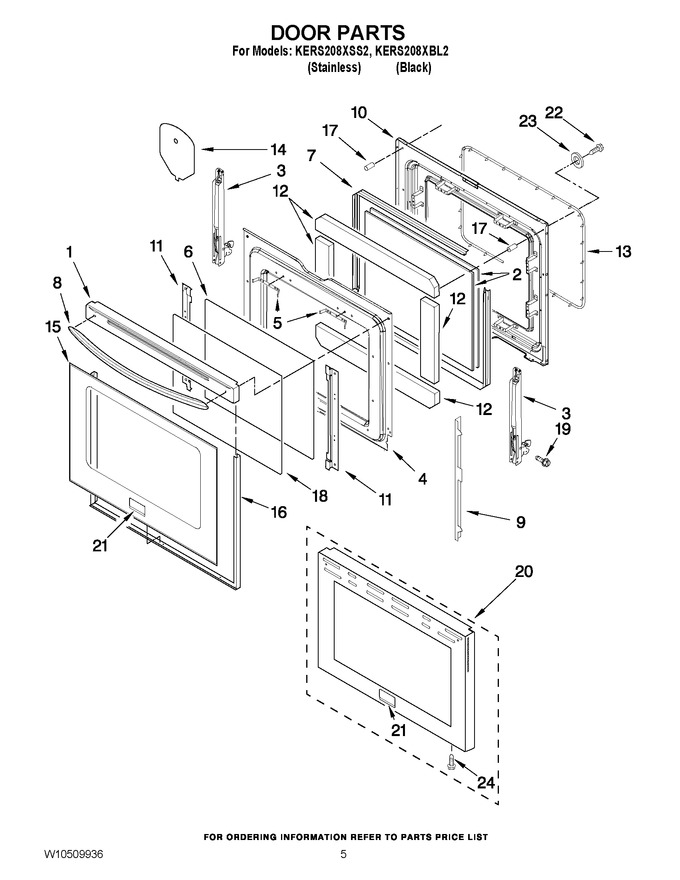

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10348026		Trim, Door Top				$ 34.81
2	W10350569		Glass, Inner				$ 98.26
3	W10392681		Hinge, Door				$ 56.32
4	W10350551		Retainer, Door Insulation		Appelez-nous	-
5	W10350617		Bracket, Glass Spacer		Appelez-nous	-
6	W10350606		Glass, Airwash (stainless)				$ 92.12
6	W10350579		Glass, Airwash (black)		Appelez-nous	-
7	W10350584		Frame, Glass Inner				$ 31.93
8	W10350605		Handle, Door (stainless)				$ 125.83
8	W10347826		Handle, Door (black)		Appelez-nous	-
9	W10350616		Bracket, Glass Door (ss Only)		Appelez-nous	-
10	W10350572		Lining, Door				$ 141.29
11	W10350589		Bracket, Glass				$ 30.71
12	W10350552		Insulation, Door				$ 39.91
13	W10350574		Seal, Door				$ 61.55
14	W10350585		Clip, Door Glass		Appelez-nous	-
15	W10357228		Glass, Door With Badge				$ 202.02
16	W10350549		Trim, Door				$ 56.14
17	W10350610		Spacer, Door Handle(ss Only)				$ 8.70
18	W10357230		Glass, Oven Door Black With Foil (ss Only)				$ 197.81
19	W10347322		Screw		Appelez-nous	-
20	W10357232		Panel, Door-outer W/badge(ss Only)				$ 247.23
21	W10852683		Nameplate   (Replaces: W10113961)				$ 104.26
22	W10347857		Screw, Door (black)				$ 32.49
22	W10370041		Screw, Door (stainless)		Appelez-nous	-
23	W10370042		Washer, Door		Appelez-nous	-
24	W10370043		Screw, Door Panel		Appelez-nous	-
