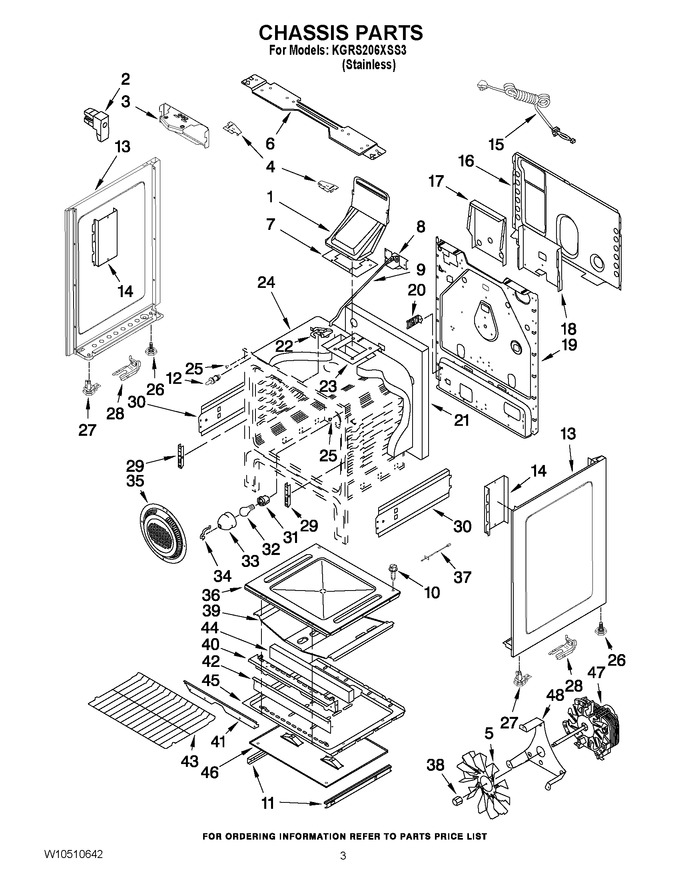

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10347158		Oven Flue		Appelez-nous	-
2	W10346958		Clip, Side		Appelez-nous	-
3	W10357267		Bracket, Support Oven Front		Appelez-nous	-
4	W10369888		Bracket, Lockdown (rh)		Appelez-nous	-
4	W10369890		Bracket, Lockdown (lh)		Appelez-nous	-
5	WPW10355276		Blade, Fan   (Replaces: W10355276)				$ 70.91
6	W10347003		Bracket, Support Chassis		Appelez-nous	-
7	W10347008		Gasket, Flue		Appelez-nous	-
8	WPW10350466		Motor, Door Latch   (Replaces: W10347438)				$ 223.21
9	W10347435		Rod-latch		Appelez-nous	-
10	W10347275		Screw, Oven Bottom		Appelez-nous	-
11	W10355274		Glide, Outer For Rh & Lh)				$ 42.25
12	W10346267		Switch, Oven Light				$ 87.20
13	W10346240		Side Panel (white, Lh)				$ 130.20
13	W10346239		Side Panel (white, Rh)				$ 119.16
13	W10346238		Side Panel (black, Lh)				$ 85.34
13	W10346237		Side Panel (black, Rh)				$ 85.31
14	W10347457		Shield, Oven Side		Appelez-nous	-
15	W10413010		Cord, Power		Appelez-nous	-
16	W10347007		Shield, Rear Wall		Appelez-nous	-
17	W10347289		Shield, Flue		Appelez-nous	-
18	W10347288		Shield, Heat		Appelez-nous	-
19	W10346230		Cover, Rear Main		Appelez-nous	-
20	W10347323		Bracket, Harness		Appelez-nous	-
21	W10347310		Insulation, Oven Back		Appelez-nous	-
22	W10346955		Latch, Oven Door		Appelez-nous	-
23	W10346234		Brace, Oven Top		Appelez-nous	-
24	W10347308		Insulation, Oven Wrapper		Appelez-nous	-
25	W10347277		Spacer, Oven Door		Appelez-nous	-
26	W10346263		Foot-level Rear Plastic				$ 5.61
27	W10346264		Foot-level Front Metal				$ 44.17
28	W10544996		Kit, Anti-tip   (Replaces: W10347458)				$ 79.97
29	W10347318		Bracket, Hinge				$ 27.12
30	W10356076		Bracket, Hinge Shield, Side (rh)		Appelez-nous	-
30	W10356077		Bracket, Hinge Shield, Side (lh)		Appelez-nous	-
31	W10346268		Socket, Light				$ 37.75
32	8009		Bulb, Light   (Replaces: W10346855)			Immediately	$ 16.80
33	W10346874		Lens, Oven Light		Appelez-nous	-
34	W10346877		Retainer, Lens				$ 5.27
35	W10347448		Cover, Fan				$ 74.41
36	W10346266		Bottom, Oven				$ 90.48
37	W10347247		Sensor, Oven				$ 110.42
38	W10347453		Nut, Fan Blade				$ 32.93
39	W10347314		Baffle, Bake Burner		Appelez-nous	-
40	W10347441		Shield, Front Burner		Appelez-nous	-
41	W10347661		Bracket, Air Dam		Appelez-nous	-
42	W10347440		Shield-main Front		Appelez-nous	-
43	W10346265		Rack, Oven				$ 53.32
44	W10359189		Insulation, Main Front		Appelez-nous	-
45	W10347271		Shield, Wool Lower		Appelez-nous	-
46	W10346993		Shield, Heat Lower		Appelez-nous	-
47	WPW10347449		Motor, Fan   (Replaces: W10347449)				$ 279.11
48	W10347442		Bracket, Motor Mount				$ 27.15
