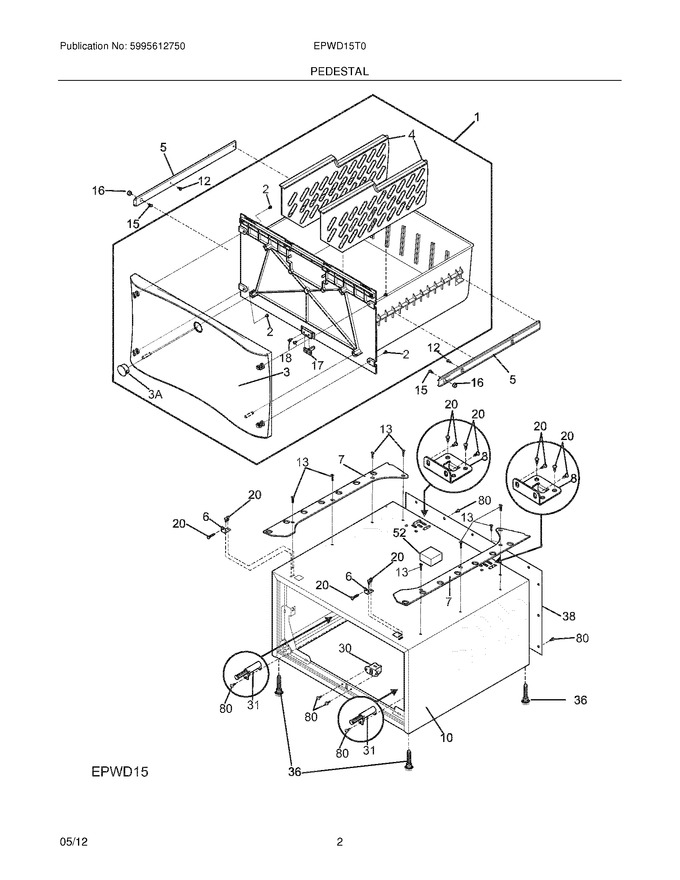

03 - Pedestal


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134862435		Drawer,pedestal ,titanium ,includes 3,4		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	134990535		Panel,front ,titanium ,drawer		Appelez-nous	-
4	134442340		Divider,drawer ,inner				$ 109.86
5	134443710		Slide,drawer Track				$ 394.54
6	5304523385		Bracket,mounting ,front   (Replaces: 134830300)			Immediately	$ 30.90
7	134840540		Spacer,gray				$ 20.27
8	5304523385		Bracket,mounting ,rear   (Replaces: 134816300)			Immediately	$ 30.90
10	137006135		Cabinet,pedestal ,titanium		Appelez-nous	-
12	5308014215		Screw,sheet Metal ,6-20 X 0.375 ,(2)   (Replaces: 134477400)				$ 2.28
13	131302901		Screw,10-16 X 0.750				$ 4.96
15	134509900		Screw,machine ,6-32 X 0.625 ,(2)				$ 14.18
16	134510400		Nut,locking ,6-32 ,(2) ,nylon Insert				$ 17.64
17	137006900		Strike,drawer				$ 14.89
18	131696300		Screw,quad Pan Head ,10-16 X 0.312				$ 9.93
20	134549700		Screw,10-16 X 0.500 ,(28)			Immediately	$ 12.29
30	137006200		Latch,drawer				$ 92.84
31	137006500		Actuator,drawer				$ 27.30
36	131841600		Leveling Leg Assy,bolt,pad & Nut				$ 29.06
38	134802700		Panel,back		Appelez-nous	-
52	131931202		Dampener,vibration ,foam				$ 17.35
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
3A	134998500		Button,drawer Front				$ 33.97
NI	5304523385		Installation Kit,mtg Hardware   (Replaces: 137335500)			Immediately	$ 30.90
