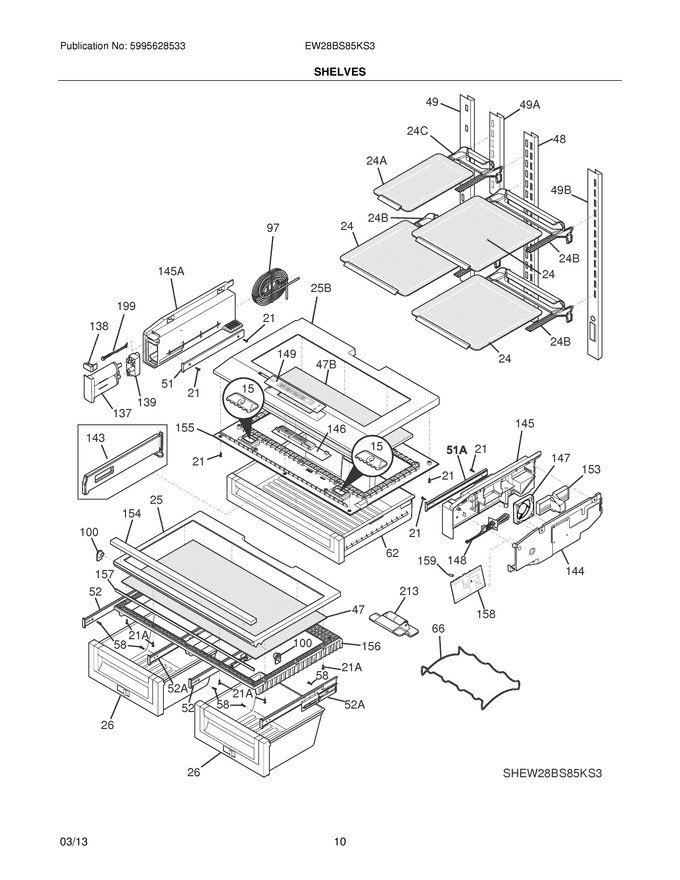

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 24 | 242128401 | Shelf-glass,formed |
|
$ 279.82 | |||||
| 25 | 241802206 | Frame-crisper Cover,upper |
|
$ 246.12 | |||||
| 26 | 241772807 | Pan-crisper |
|
$ 254.73 | |||||
| 47 | 241768801 | Insert-pan Cover,glass |
|
$ 72.66 | |||||
| 48 | 242122101 | Channel-shelf Mtg,center |
|
$ 80.09 | |||||
| 49 | 242122203 | Channel-shelf Mtg,side ,lh |
|
- | |||||
| 51 | 242156404 | Slide-deli Soft Close,bm ,lh |
|
$ 190.66 | |||||
| 52 | 242156507 | Slide-crisper Cover,soft Close ,lh ,bm |
|
$ 177.19 | |||||
| 58 | 241941202 | Screw,8-18 X 3/8 |
|
$ 15.17 | |||||
| 62 | 241827205 | Pan-deli |
|
$ 262.19 | |||||
| 66 | 242131002 | Mat-wine |
|
$ 71.98 | |||||
| 97 | 241821204 | Water Tank,coil ,cd |
|
$ 138.29 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 19.13 | |||||
| 138 | 241885901 | Button-filter Release |
|
$ 28.35 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 143 | 242151003 | Divider-deli Pan |
|
$ 109.36 | |||||
| 144 | 241803902 | Cover-deli Air Control |
|
$ 127.96 | |||||
| 145 | 241803804 | Housing-deli Air Control |
|
$ 133.35 | |||||
| 147 | 241825704 | Fan Assembly,motor ,with Blade |
|
$ 289.58 | |||||
| 154 | 241879902 | Trim-crisper Cover |
|
$ 39.44 | |||||
| 155 | 241803404 | Frame-deli Cover,lower |
|
$ 204.12 | |||||
| 156 | 241872005 | Frame-crisper Cover,lower |
|
$ 151.73 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 53.85 | |||||
| 159 | 241815401 | Cap,pcba Hold Down |
|
- | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 213 | 242010901 | Roller Assy,deli Pan |
|
$ 49.62 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 24A | 242128402 | Shelf-glass,formed |
|
$ 240.56 | |||||
| 24B | 242216402 | Bracket-shelf,w/gasket |
|
$ 273.05 | |||||
| 24C | 242216401 | Bracket-shelf,w/gasket |
|
$ 240.61 | |||||
| 25B | 5303918423 | Cover-pan,ptd ,cover Kit |
|
$ 251.58 | |||||
| 47B | 241967401 | Glass,2 Pane Insulatd |
|
$ 225.39 | |||||
| 49A | 5304531311 | Channel-shelf Mtg,center ,icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122302 | Channel-shelf Mtg,side ,rh |
|
$ 73.00 | |||||
| 51A | 242156402 | Slide-deli Soft Close,bm ,rh |
|
$ 197.04 | |||||
| 52A | 242156508 | Slide-crisper Cover,soft Close ,rh ,bm |
|
$ 145.69 | |||||
| F137 | 242175101 | Filter-water,water ,carbon Cassette ,front,with O`rings |
|
- | |||||
| F137 | 240527001 | O-ring,wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 | |||||
| F139 | 241858401 | Screw,no.6 X 1/2 Hilo |
|
$ 13.05 | |||||
| F145 | 242058710 | Support,rail |
|
$ 120.50 | |||||
| F146 | 241958401 | Control-electronic,ptd |
|
$ 272.87 | |||||
| F146 | 5304521780 | Harness-power Ptd (Replaces: 241822602) |
|
$ 23.51 | |||||
| F146 | 242130101 | Clip,retainer ,ptd Board |
|
- | |||||
| F147 | 241936201 | Damper-rubber,ptd Fan |
|
- | |||||
| F148 | 241782001 | Heater-ptd,115 V |
|
$ 194.90 | |||||
| F148 | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 3.79 | |||||
| F149 | 242025901 | Overlay,electronic ,membrane Switch |
|
$ 159.47 | |||||
| F15 | 241891101 | Light-led |
|
$ 59.85 | |||||
| F153 | 241775301 | Motor-damper |
|
$ 227.24 | |||||
| F153 | 241835402 | Harness-wiring,mixing Valve |
|
$ 23.39 | |||||
| F158 | 241955004 | Board-main Power,ptd |
|
$ 245.23 | |||||
| F199 | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| F25B | 241862601 | Harness-wiring,ptd W/led |
|
$ 122.09 | |||||
| F25B | 241862501 | Harness-wiring,ptd Main W/led |
|
$ 47.48 | |||||
| F47B | 5304469950 | Sealant,rubber Silicone |
|
Immediately | $ 89.95 | ||||
| NI | 242110283 | Energy Guide |
|
- |
