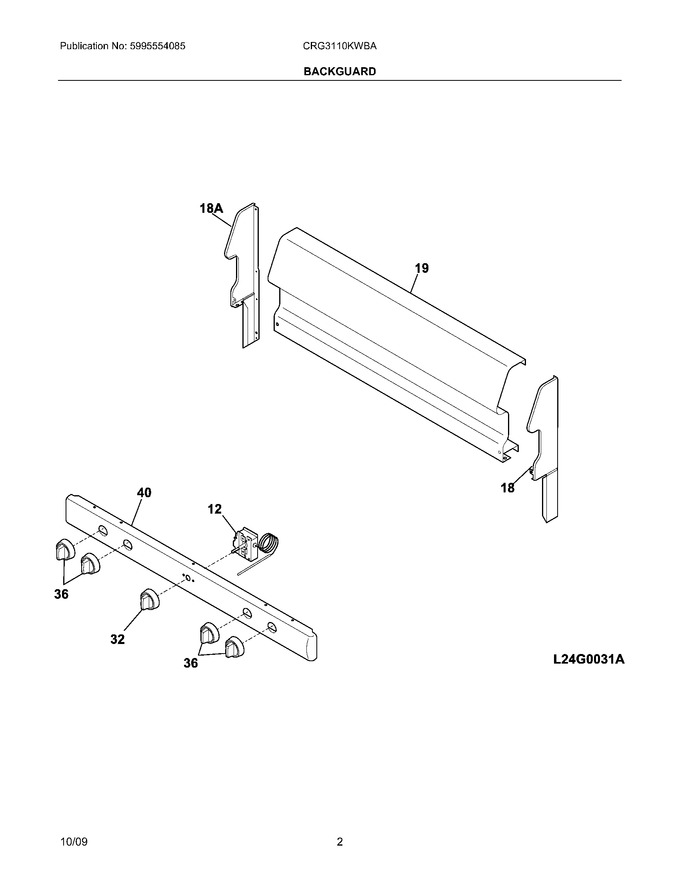

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	316263404		End Cap,white ,rh		Appelez-nous	-
19	316263201		Panel,control ,white		Appelez-nous	-
32	316102300		Knob-thermostat,black				$ 65.22
36	316009044		Knob,top Valve ,black ,(4)		Appelez-nous	-
40	316458042		Panel,manifold ,black		Appelez-nous	-
18A	316263405		End Cap,white ,lh		Appelez-nous	-
F12	316032411		Thermostat			Immediately	$ 165.14
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316097602		Insulator		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
