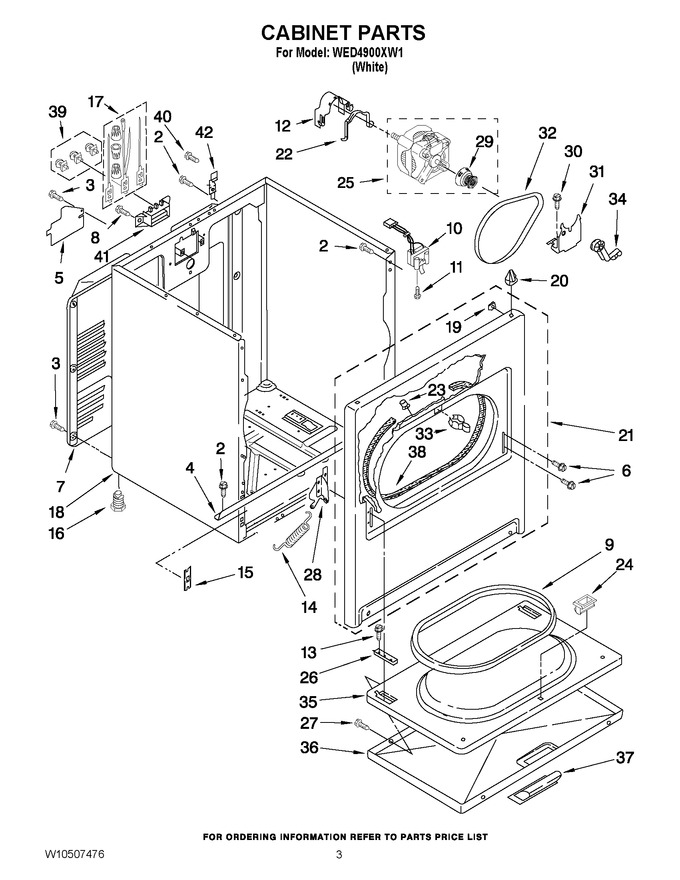

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.04 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 4 | W10236073 | Bracket, Cabinet |
|
- | |||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 539.78 | ||||
| 6 | 342043 | Screw |
|
- | |||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 307.17 | |||||
| 8 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.04 | |||||
| 9 | W10906683 | Seal, Door (Replaces: 3390731) |
|
$ 115.68 | |||||
| 10 | WP3406107 | Door Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 6.93 | |||||
| 12 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.04 | ||||
| 13 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 14 | WPW10041960 | Spring, Door (Replaces: W10041960) |
|
Immediately | $ 36.60 | ||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 17 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 39) |
|
Immediately | $ 90.89 | ||||
| 18 | 8533643 | Cabinet (includes Illus. 4) (Replaces: 8530603) |
|
$ 359.33 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 17.55 | ||||
| 21 | 279443 | Panel, Front (Replaces: 695620) |
|
$ 347.58 | |||||
| 22 | WPW10121316 | Clamp, Motor (Replaces: W10121316) |
|
Immediately | $ 23.11 | ||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | WP3389441 | Catch, Door Assembly (Replaces: 3389441) |
|
Immediately | $ 5.58 | ||||
| 25 | 279827 | Motor Assembly 60 Hz. (Replaces: W10396029) |
|
Immediately | $ 172.76 | ||||
| 26 | W11252547 | Clip, Hinge (Replaces: 337189) |
|
$ 19.25 | |||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 6.81 | |||||
| 28 | WP8066057 | Hinge, L.h. (Replaces: 8066057) |
|
$ 86.53 | |||||
| 28 | WP8066056 | Hinge, R.h. (Replaces: 8066056) |
|
Immediately | $ 88.70 | ||||
| 29 | WP8066184 | Pulley 60 Hz. (Replaces: 8066184) |
|
Immediately | $ 45.92 | ||||
| 30 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.03 | ||||
| 31 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 32 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 16.34 | ||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 34 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 35 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 229.10 | |||||
| 36 | WP3393549 | Door, Front (Replaces: 3393549) |
|
$ 158.86 | |||||
| 37 | W10877261 | Handle, Door (Replaces: W10095180) |
|
$ 77.81 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 70.90 | ||||
| 39 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 40 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 41 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 20.72 | |||||
| 42 | WP8066217 | Hinge, Top (Replaces: 8066217) |
|
$ 7.04 | |||||
| NI | 49621 | Foot-optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
