01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

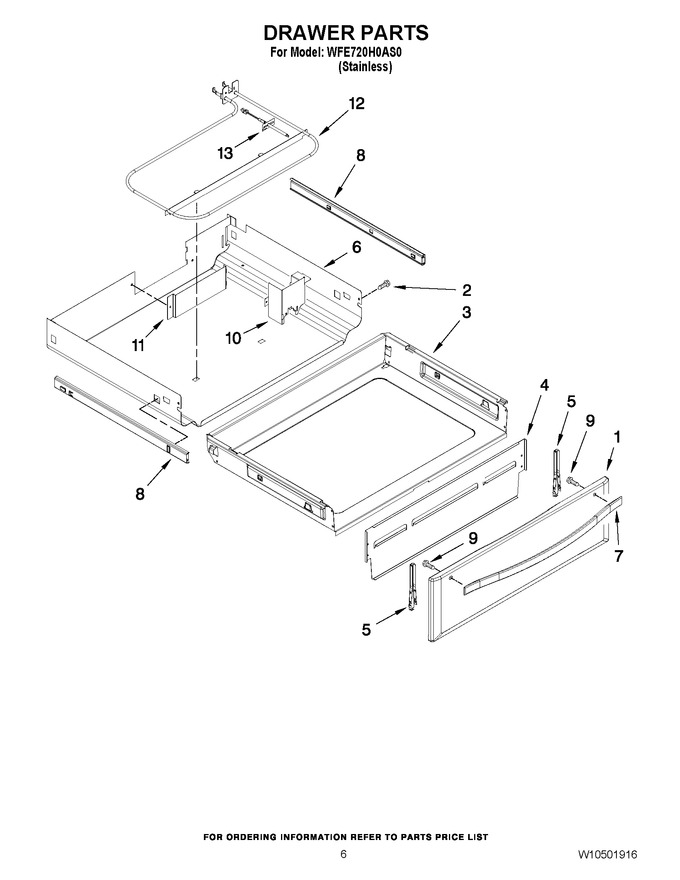

| 1 | W11334144 | Panel, Drawer (Replaces: W10330059) |
|
$ 178.80 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 4 | W10324878 | Panel, Front Inner |
|
- | |||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 103.00 | |||||
| 6 | W10634260 | Enclosure, Warming (Replaces: W10106394) |
|
Immediately | $ 179.16 | ||||
| 7 | WPW10618239 | Handle (Replaces: W10254687) |
|
Immediately | $ 157.99 | ||||
| 7 | WPW10441805 | Right (Replaces: W10441805) |
|
Immediately | $ 92.68 | ||||
| 8 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 92.75 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 10 | W10634259 | Cover, Wire (warming Element) (Replaces: W10323358) |
|
$ 75.29 | |||||
| 11 | W10325438 | Panel, Cover |
|
$ 134.56 | |||||
| 12 | WPW10323181 | Element, Warming (Replaces: W10323181) |
|
$ 113.21 | |||||
| 13 | WPW10131827 | Sensor, Rtd Wako (Replaces: W10131827) |
|
$ 236.21 |
