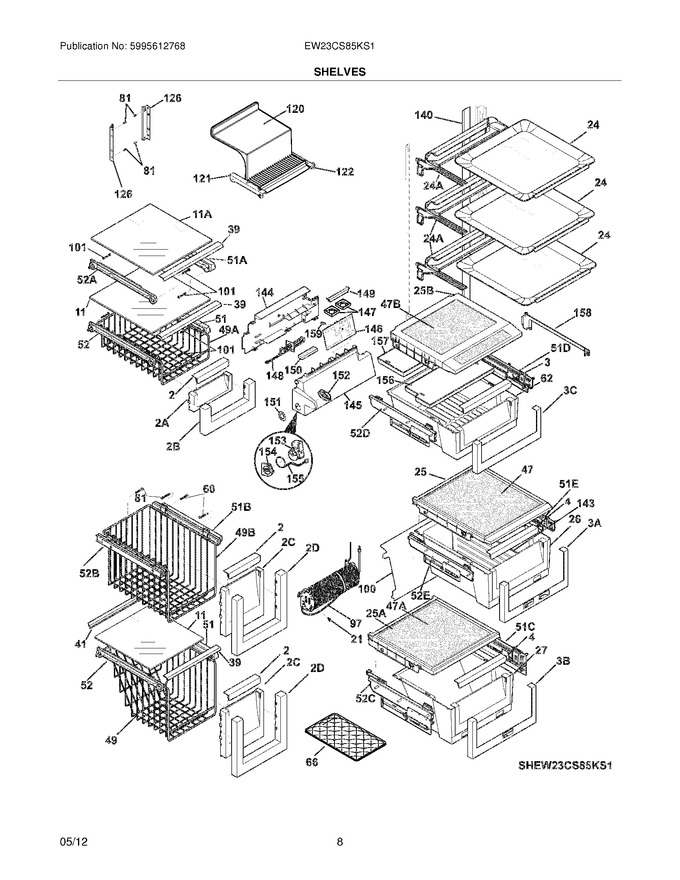

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 55.99
3	241745301		Handle-crisper Pan,silver				$ 74.81
4	241950801		Handle-crisper Pan,silver				$ 58.59
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 86.45
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	242128406		Shelf-``spill-safe``,formed Glass ,lift-off		Appelez-nous	-
25	241745502		Cover-crisper Pan,upper		Appelez-nous	-
26	241745604		Pan-crisper,upper ,w/divi Retainer		Appelez-nous	-
27	241950502		Pan-crisper,lower				$ 229.64
39	240367603		Trim-shelf,11.65`` ,front				$ 74.42
41	241571201		Trim-shelf,rear		Appelez-nous	-
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	241744201		Basket-sliding				$ 170.05
51	241799801		Hanger-shelf Glass,rh				$ 58.82
52	241799901		Hanger-shelf Glass,lh				$ 74.32
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
62	241783502		Pan-meat				$ 212.44
66	242131002		Mat-wine				$ 71.98
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	241532006		Water Tank				$ 130.41
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
120	242148901		Shelf-ice Cream		Appelez-nous	-
121	242148801		Rail-ice Cream Shelf,lh		Appelez-nous	-
122	242148802		Rail-ice Cream Shelf,rh		Appelez-nous	-
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	241812502		Channel,wtr Tube Cover				$ 76.97
143	241746001		Divider-crisper Pan				$ 51.50
144	241951502		Housing-control Unit				$ 113.59
145	241951302		Cover-control Housing				$ 92.19
149	241951601		Retainer,wire ,ptd		Appelez-nous	-
150	241953002		Pad,foam				$ 5.49
151	241512811		Seal				$ 17.54
152	242183301		Seal-return Air				$ 12.71
153	241781701		Valve,air Mixing				$ 197.74
154	241797901		Cover,air Mixer ,ptd		Appelez-nous	-
156	241962701		Insulation,meat Pan Front				$ 99.09
157	241962702		Insulation,meat Pan Rear				$ 70.03
158	241955501		Cover-wire		Appelez-nous	-
159	241815401		Cap,pcba Hold Down		Appelez-nous	-
11A	240443358		Shelf-freezer,glass ,upper				$ 97.07
24A	242216403		Bracket-shelf,w/gasket ,& Lock		Appelez-nous	-
25A	241747102		Cover-crisper Pan,lower				$ 99.49
25B	5303918612		Cover-pan,ptd ,cover Kit		Appelez-nous	-
2A	241741601		Trim-basket,front				$ 41.11
2B	241742101		Front-frzr Basket				$ 33.18
2C	241743201		Trim-basket				$ 83.69
2D	241743901		Trim-basket				$ 38.27
3A	5303918369		Trim-crisper,w/hum Cntl&btn				$ 92.45
3B	5303918370		Trim-crisper,w/hum Cntl&btn				$ 83.27
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	5303918418		· Glass-insulated,replacement Kit ,perfect Temp Dw				$ 209.06
49A	241742201		Basket-sliding,upper ,half		Appelez-nous	-
49B	241744001		Basket-sliding,upper ,full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 63.79
51B	241809101		Hanger-basket,rh				$ 187.82
51C	240579814		Hanger-basket,lower Crisper ,rh				$ 181.40
51D	240579812		Hanger-basket,ptd ,rh				$ 177.43
51E	240579818		Hanger-basket,upper Crisper ,rh		Appelez-nous	-
52A	241514801		Hanger-shelf Glass,lh				$ 343.75
52B	241809102		Hanger-basket,lh				$ 158.05
52C	240579813		Hanger-basket,lower Crisper ,lh				$ 195.51
52D	240579811		Hanger-basket,ptd ,lh				$ 184.96
52E	240579817		Hanger-basket,upper Crisper ,lh				$ 279.41
F144	241952401		Harness-power Ptd		Appelez-nous	-
F146	241955001		Board-main Power,ptd				$ 332.59
F147	241977001		Fan,cooling ,small				$ 119.83
F148	241782001		Heater-ptd,115 V				$ 194.90
F155	241781801		Heater,air Mixer ,ptd		Appelez-nous	-
F158	241952601		Harness,ptd				$ 132.53
F25B	241955101		· Cover,frame Ptd		Appelez-nous	-
F25B	242025901		Overlay,electronic ,membrane Switch				$ 159.47
F25B	241955302		· Frame,main Shelf		Appelez-nous	-
F25B	241955201		· Frame-meat Pan Cover,lower		Appelez-nous	-
F25B	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
F25B	241958401		Control-electronic,ptd				$ 272.87
F25B	241783301		· Harness-wiring,ptd W/led		Appelez-nous	-
F51B	297049500		Clip-slide,basket			Immediately	$ 20.56
F51C	242169702		Spacer-soft Close,rh				$ 86.10
F51D	242169602		Spacer-soft Close,rh		Appelez-nous	-
F51E	242169902		Spacer-soft Close,rh		Appelez-nous	-
F52C	242169701		Spacer-soft Close,lh				$ 70.56
F52D	242169601		Spacer-soft Close,lh		Appelez-nous	-
F52E	242169901		Spacer-soft Close,lh				$ 76.23
NI	242174901		Nut-soft Close Spacer		Appelez-nous	-
NI	242146206		Label-energy Guide		Appelez-nous	-
