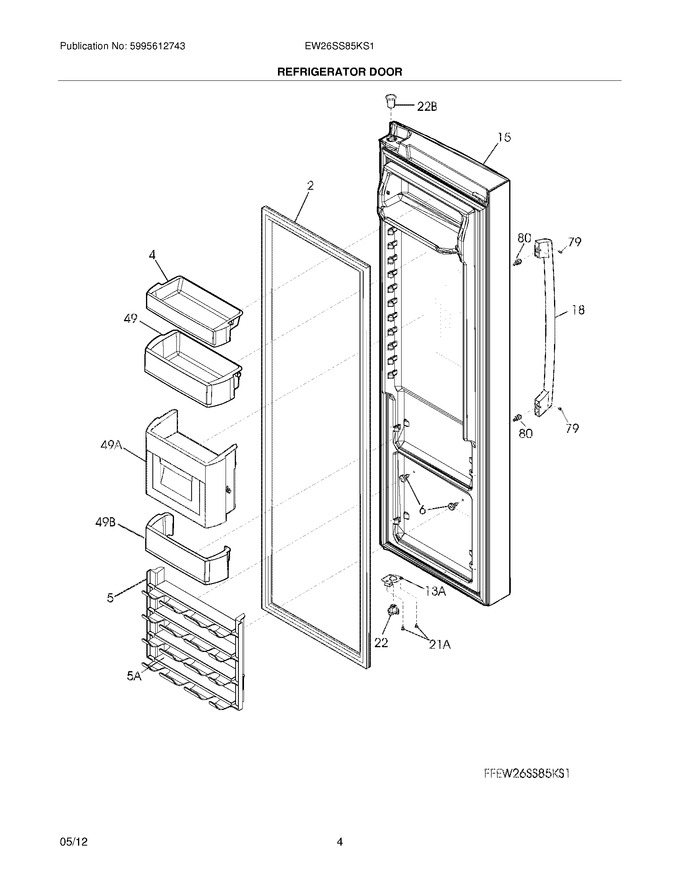

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	242142702		Bin-door,1/2 Gallon		Appelez-nous	-
5	242156102		Rack-can		Appelez-nous	-
6	242039702		Screw,shoulder ,no.10-16 ,(2)				$ 4.26
15	242038834		Door-refr,stainless ,complete Assy				$ 716.27
18	241881304		Handle-refr Door,stainless				$ 263.66
22	241990301		Bearing-hinge,gray				$ 7.09
49	241749902		Bin-door,gallon				$ 117.81
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	241990201		Door Stop,black ,ref				$ 21.27
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing,hinge ,top			Immediately	$ 19.13
49A	242193501		Bin-door,harvest		Appelez-nous	-
49B	241751101		Bin-door,2-liter				$ 94.98
5A	242157901		Stop-can		Appelez-nous	-
F2	241786013		Gasket-refr Door,grey ,magnetic   (Replaces: 241786009)				$ 95.90
NI	241701902		Screwdriver,hex ,3/32`` ,ball Driver				$ 19.85
NI	241601002		Wrench,allen		Appelez-nous	-
