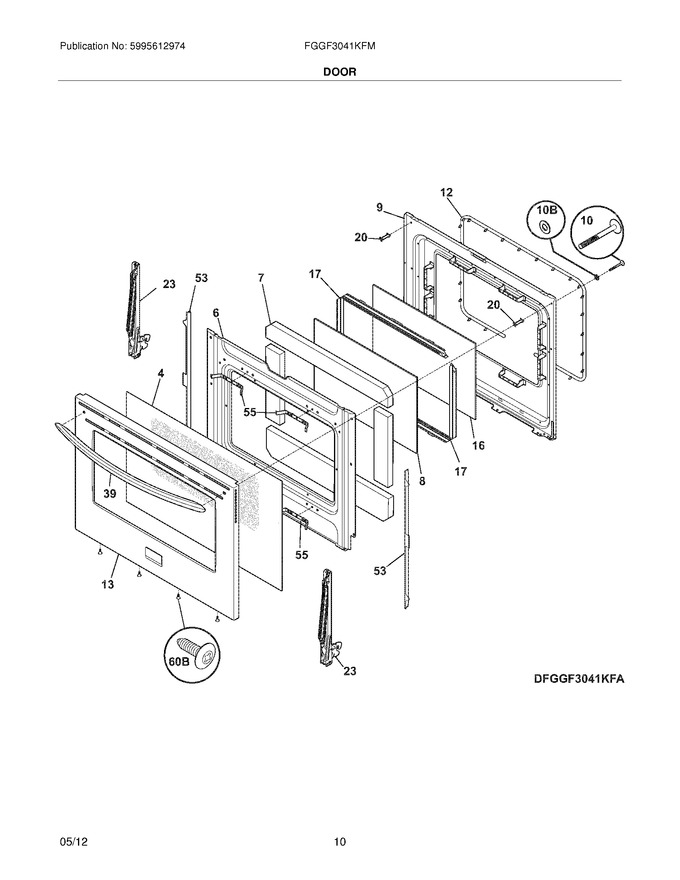

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452722		Glass,oven Door ,black ,w/foil				$ 267.25
6	316402316		Shield,wool   (Replaces: 316402310)			Immediately	$ 88.72
7	316403900		Insulation,oven Door			Immediately	$ 72.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423807		Liner-oven Door				$ 171.40
10	316433303		Screw,handle Mtg. ,10-24 X 1.75`` ,(2)   (Replaces: 316439500)			Immediately	$ 31.17
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
13	316604011		Panel,oven Door ,stainless   (Replaces: 316407811)				$ 130.63
16	316117501		Glass,oven Door ,inner				$ 148.16
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
20	316284100		Spacer,door Handle ,(2)				$ 14.89
23	316575906		Hinge,oven Door			Immediately	$ 93.29
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
53	5304532043		Shield,filler ,door ,(2)   (Replaces: 316408101)				$ 37.41
55	316408300		Bracket,glass Support ,(4)				$ 21.23
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
