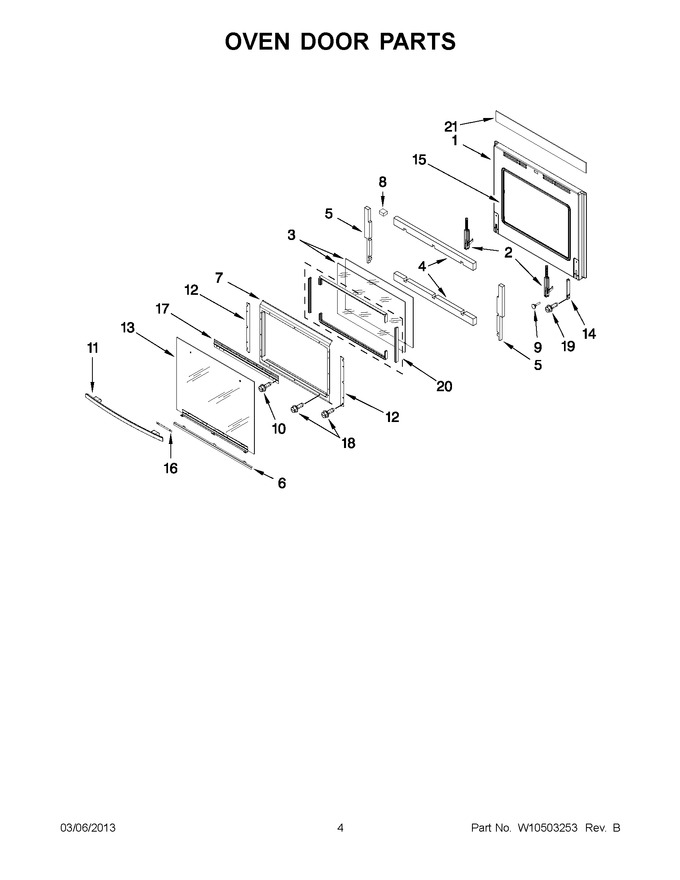

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187020		Liner, Door				$ 228.55
2	W10277752		Hinge, Door (stainless Model)				$ 70.97
2	W10186751		Hinge, Door (black And White Model)		Appelez-nous	-
3	W10176101		Glass, Inner				$ 92.82
4	W10273677		Insulation, Door (horizontal)		Appelez-nous	-
5	W10273591		Insulation, Door (vertical)				$ 39.20
6	W10176176		Bracket, Door Clip		Appelez-nous	-
7	W10176105		Retainer, Door Glass		Appelez-nous	-
8	W11684783		Insulation, Corner Door   (Replaces: W10296505)		Appelez-nous	-
9	W10176233		Bumper, Door		Appelez-nous	-
10	W10267047		Screw				$ 11.55
11	W10186760		Handle, Door (stainless)				$ 252.95
11	W10186759		Handle, Door (black)		Appelez-nous	-
11	W10186758		Handle, Door (white)		Appelez-nous	-
12	W10186882		Bracket, Inner Door Glass				$ 29.84
13	W10401224		Glass, Outer Door Assembly (stainless)   (Replaces: W10176228)				$ 488.44
13	W10277595		Glass, Outer Door Assembly (black)				$ 137.71
13	WPW10277596		Glass, Outer Door Assembly (white)   (Replaces: W10277596)				$ 249.07
14	W10175993		Hinge, Receiver				$ 44.06
15	W10213804		Glass, Cavity				$ 91.77
16	W10213722		Pad, Handle (spacer Black And White Model)				$ 84.48
16	W10176201		Pad, Handle (spacer Stainless Model Only)				$ 7.82
17	W10176126		Bracket, Handle				$ 137.66
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
19	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
20	W10305979		Silicone, Inner Glass				$ 88.95
21	W10277580		Insulation, Door		Appelez-nous	-
