SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

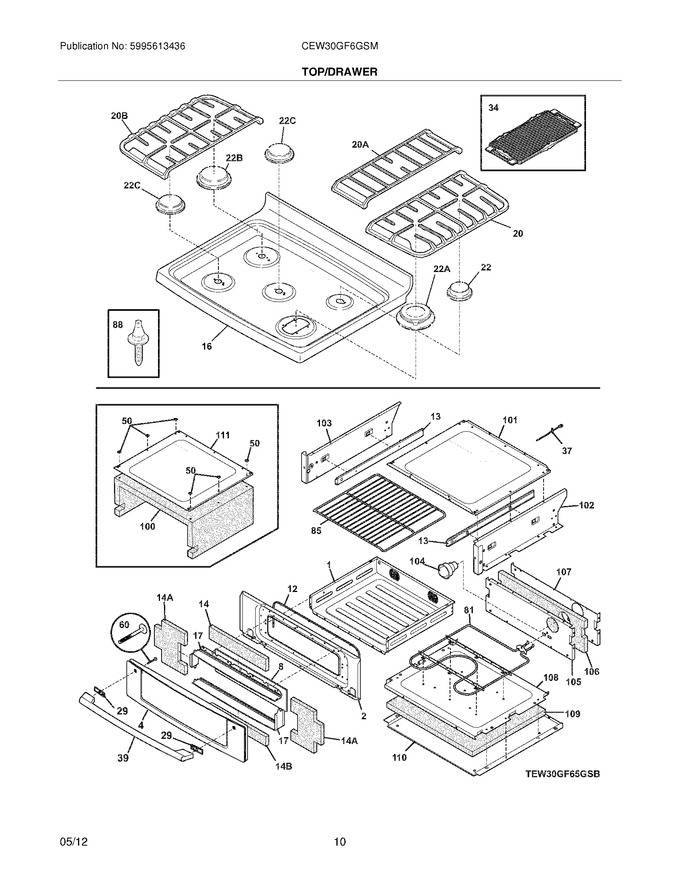

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316414107		Drawer,mini Oven ,cobalt				$ 116.71
2	316510301		Liner,drawer ,cobalt ,mini Oven		Appelez-nous	-
4	316538207		Panel Assembly,drawer Glass ,black ,outer,w/tape				$ 240.25
8	316431902		Glass,inner Door ,mini Oven		Appelez-nous	-
12	316410702		Seal,door ,mini Oven		Appelez-nous	-
13	316449801		Glide,drawer ,mini Oven ,(2)				$ 129.51
14	316451502		Insulation,door Top ,mini Oven		Appelez-nous	-
16	316506853		Main Top,stainless				$ 528.31
17	316508001		Spacer,glass ,(2)		Appelez-nous	-
20	316537800		Grate,double Burner ,lh				$ 246.02
22	316548600		Cap,burner ,5k ,black				$ 87.70
29	316505401		Spacer,handle ,gray ,(2)				$ 18.17
34	316534001		Griddle				$ 213.34
39	241881301		Handle,door ,stainless				$ 170.06
50	316452100		Fastener,push Nut ,(6)		Appelez-nous	-
60	5304507924		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513301)			Immediately	$ 16.48
85	316411000		Rack,mini Oven				$ 67.15
88	316099500		Pin,guide ,(2)				$ 6.53
100	316451300		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	316410201		Panel,top ,mini Oven		Appelez-nous	-
102	316450501		Panel,side ,rh ,mini Oven		Appelez-nous	-
103	316450503		Panel,side ,lh ,mini Oven		Appelez-nous	-
104	316431501		Light Assembly,mini Oven				$ 61.36
105	316450803		Panel,back ,mini Oven		Appelez-nous	-
106	316451400		Insulation,back ,mini Oven		Appelez-nous	-
107	316451603		Shield,main Back ,mini Oven		Appelez-nous	-
108	316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	316410401		Shield,floor ,mini Oven		Appelez-nous	-
111	316450401		Shield,top ,mini Oven		Appelez-nous	-
14A	316451501		Insulation,door Sides ,mini Oven ,(2)		Appelez-nous	-
14B	316414203		Insulation,door Bottom ,mini Oven				$ 12.02
20A	316537900		Grate,burner ,center				$ 227.28
20B	316538000		Grate,double Burner ,rh				$ 242.06
22A	316511502		Cap,burner ,18k ,black				$ 248.45
22B	316548800		Cap,burner ,14k ,black				$ 131.46
22C	316548700		Cap,burner ,9.5k ,black ,(2)				$ 134.23
F37	316217006		Probe,oven Temp ,mini Oven				$ 74.42
F81	316450903		Element,bake ,mini Oven				$ 134.19
FNI	316525621		Harness,mini ,oven Cntl		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 12.89
NI	316436900		Screw-shoulder,w/shoulder 1/2`` ,no.8-18 X 7/8		Appelez-nous	-
