SELECT A DIAGRAM

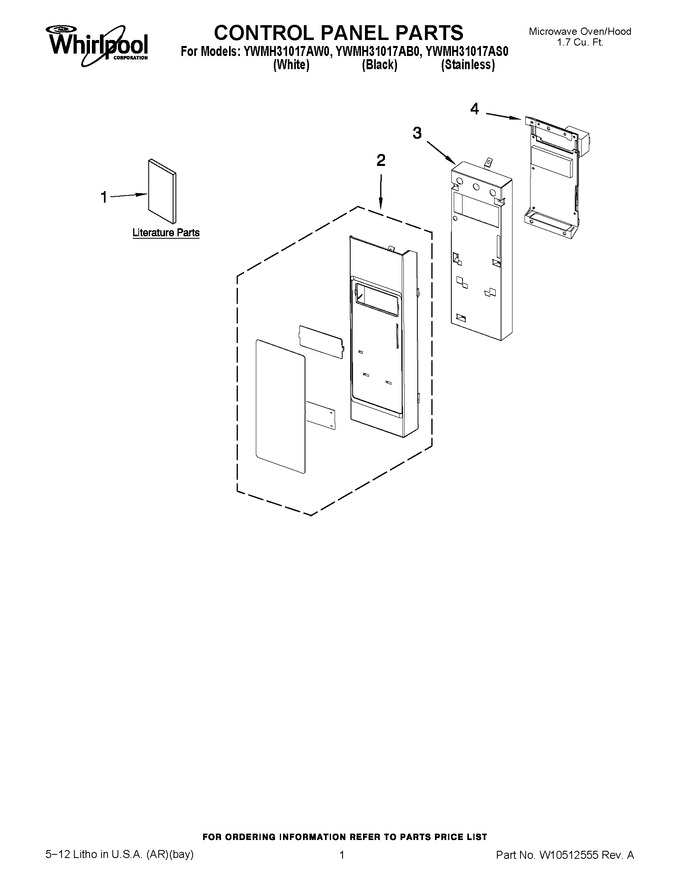

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10458011		U & C Guide		Appelez-nous	-
1	W10458014		Tech Sheet		Appelez-nous	-
1	W10458017		Cook Guide Label		Appelez-nous	-
1	W10344701		Install, Instruct.		Appelez-nous	-
2	W10468660		Panel Asy, Control Includes Lens And Membrane Switch (white)				$ 296.12
2	W10468661		Panel Asy, Control Includes Lens And Membrane Switch (black)				$ 285.20
2	W10443378		Panel Asy, Control Includes Lens And Membrane Switch (stainless)				$ 280.18
3	W10468659		Bracket, Control				$ 73.57
4	W10470437		Microcomputer				$ 105.11

    View Diagram in Separate Window       Print Part List
