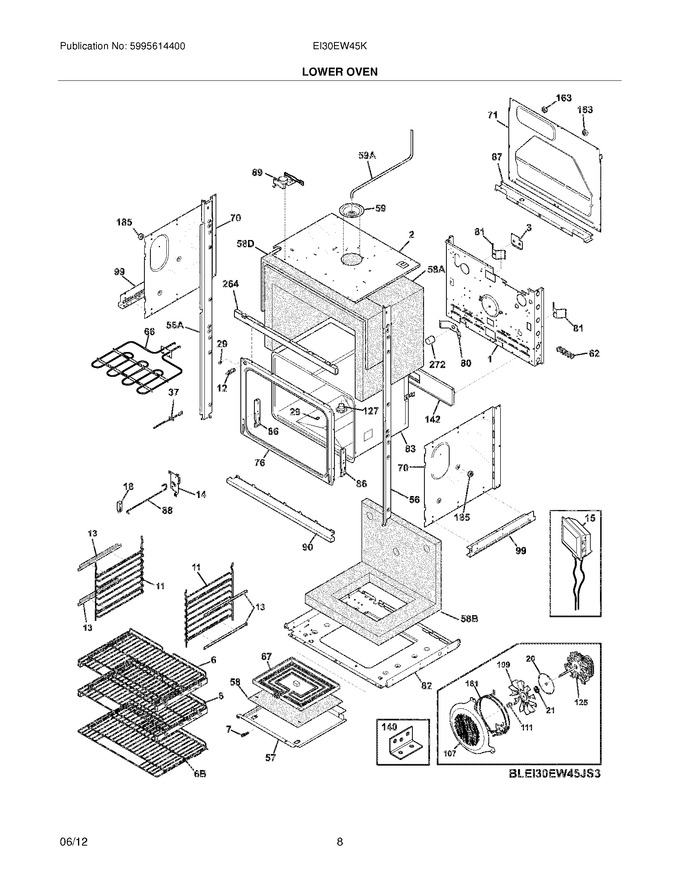

07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318570500		Panel,insualtion ,top				$ 86.89
3	318402800		Plate,cover				$ 9.23
6	318903110		Shelf,oven		Appelez-nous	-
7	318368300		Pin,locking ,(2)				$ 9.93
11	318903300		Rack,oven Shelf ,(2)				$ 105.80
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
18	318562300		Bracket,rod				$ 16.87
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
29	316517600		Spacer,oven Door				$ 12.05
56	318903676		Trim,side Filler ,black ,rh				$ 126.86
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
59	318578901		Adapter,flue		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	318260007		Panel,rear Box				$ 102.90
76	318056298		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258775		Shield,insulation ,lower				$ 116.87
83	318261445		Liner,oven Assy				$ 183.15
86	318241408		Receptacle,hinge ,(2)				$ 47.41
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
88	318376505		Rod,latch				$ 13.72
90	318903512		Trim,oven Bottom ,black				$ 198.50
99	318256203		Bracket,side ,bottom ,(2)		Appelez-nous	-
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
140	318399310		Bracket,holding		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257808		Trim,oven ,black ,front		Appelez-nous	-
272	318249409		Tube,protector		Appelez-nous	-
56A	318903677		Trim,side Filler ,black ,lh		Appelez-nous	-
58A	318386113		Insulation,oven Wrapper		Appelez-nous	-
58B	318362100		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
59A	318579202		Tube,exhaust ,lower		Appelez-nous	-
6B	318908006		Shelf,oven   (Replaces: 318908003)			Immediately	$ 232.91
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F125	318398203		Motor,fan				$ 172.63
F14	318562200		Sensor Assy,w/switch ,and Bracket				$ 257.99
F15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
F161	318255511		Element,convection ,2500 W			Immediately	$ 110.20
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255815		Element,broil ,4000w				$ 168.89
F67	318601604		Element,hidden Bake			Immediately	$ 260.38
F89	318261226		Motor,latch Assy				$ 153.41
FNI	318572779		Harness,wiring ,main		Appelez-nous	-
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	318199787		Wiring Harness,latch ,no Bas		Appelez-nous	-
FNI	318946400		Bulb,halogen ,g9 ,40w ,120v			Immediately	$ 49.32
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304456367		Rivet,ladder Bracket ,(8)				$ 13.99
NI	318268099		Insulation		Appelez-nous	-
NI	5304537066		Lubricant,high Temp ,oven Racks   (Replaces: 5304469602)			Immediately	$ 42.62
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	316095800		Clip-hold Down				$ 9.93
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304476994		Screw,8-18 X 1/4 ,(2)		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304481623		Screw,hinge/recpt Mtg				$ 9.61
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
