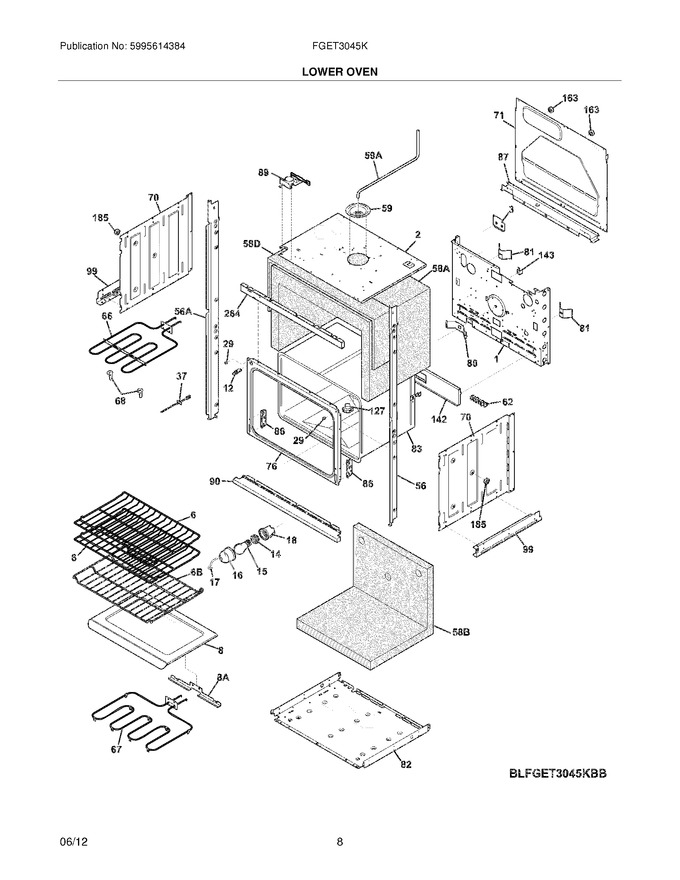

07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318570500		Panel,insualtion ,top				$ 86.89
3	318402800		Plate,cover				$ 9.23
6	318922301		Rack,oven			Immediately	$ 163.05
8	318262001		Cover,element				$ 398.49
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
29	316517600		Spacer,oven Door				$ 12.05
56	318903678		Trim,side Filler ,white ,rh		Appelez-nous	-
59	318578901		Adapter,flue		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258765		Shield,insulation ,lower				$ 85.68
83	318261456		Liner,oven Assy				$ 196.19
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
90	318259700		Trim,oven Front ,white ,bottom				$ 194.30
99	318256203		Bracket,side ,bottom ,(2)		Appelez-nous	-
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257846		Trim,oven ,black ,front		Appelez-nous	-
56A	318903679		Trim,side Filler ,white ,lh		Appelez-nous	-
56A	5304476599		Screw,8-18 X 3/8				$ 3.36
58A	318386113		Insulation,oven Wrapper		Appelez-nous	-
58B	318133791		Insulation,oven Back ,back/bottom		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
59A	318579202		Tube,exhaust ,lower		Appelez-nous	-
6B	318919801		Rack,oven				$ 335.42
8A	318318600		Bracket,element ,hidden Bake				$ 37.17
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255808		Element,broil ,3400w				$ 121.70
F67	318254906		Element,bake ,3400w ,8 Pass			Immediately	$ 259.36
F89	318261226		Motor,latch Assy				$ 153.41
FNI	5304517329		Harness,wiring ,speed Sensor   (Replaces: 318582630)				$ 42.47
FNI	318532135		Harness,wiring ,latch ,no Bas		Appelez-nous	-
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	318572724		Harness,wiring ,main		Appelez-nous	-
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	316095800		Clip-hold Down				$ 9.93
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	318165800		Spacer				$ 17.72
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304476994		Screw,8-18 X 1/4 ,(2)		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	318268099		Insulation		Appelez-nous	-
